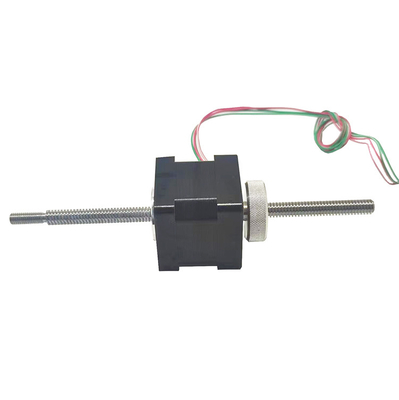

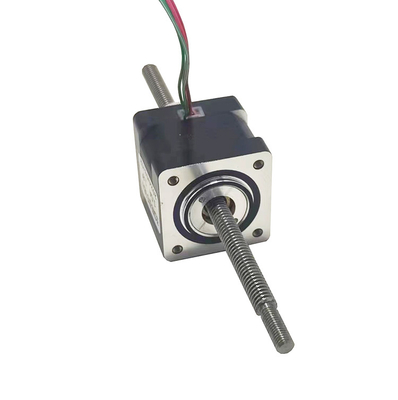

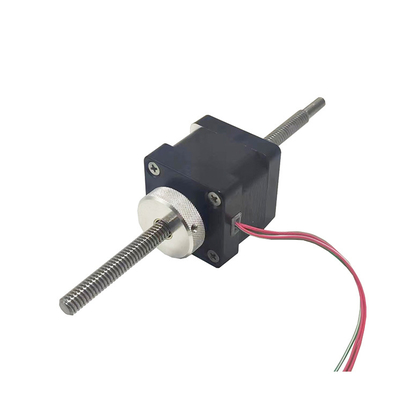

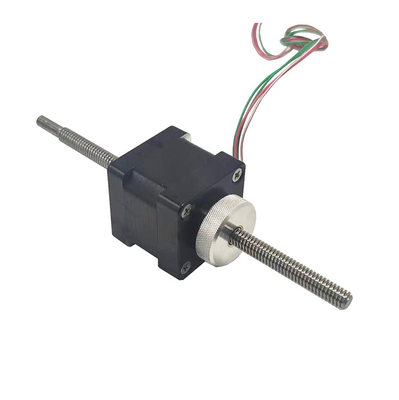

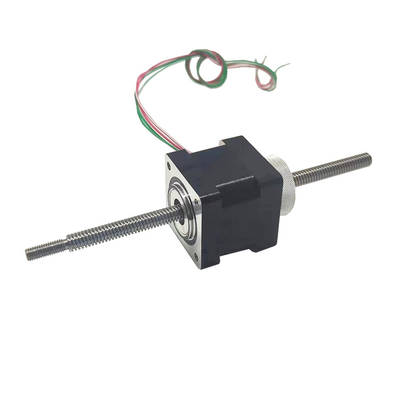

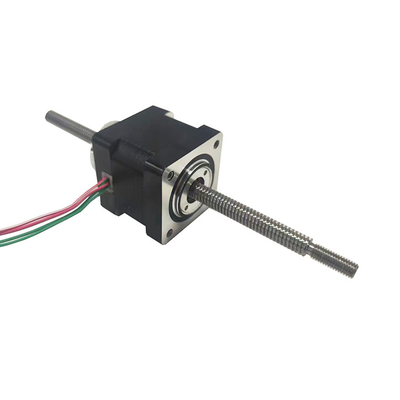

35mm hybrid linear stepper motor NEMA14 non-captive through going shaft with manual nut
| Place of Origin | China |
|---|---|
| Brand Name | VIC-TECH |
| Certification | RoHS, ISO9001 |
| Model Number | NEMA14 |
| Minimum Order Quantity | 1Unit |
| Price | $40~$69/Unit |
| Packaging Details | Standard export package in corrugated carton (Mass production). |
| Delivery Time | 15-30 work days |
| Payment Terms | Western Union, T/T, L/C, MoneyGram |
| Supply Ability | 100000 Units/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Resistance | 1.8Ω±15% | Phase | 2 Phases, 4 Steps |
|---|---|---|---|
| Type | Hybrid Linear Stepper Motor | Step Angle | 1.8° |
| Minimal Thrust | 11KG | Motor Size | 35mm (NEMA14) |
| Highlight | non captive hybrid linear stepper motor,35mm hybrid linear stepper motor,NEMA14 hybrid linear stepper motor |
||
Product Description
35mm hybrid linear stepper motor NEMA14 non-captive through going shaft with manual nut
This product is 20.2mm diameter hybrid stepper motor with high resolution optical encoder.
Motor is regular NEMA 8 hybrid motor, and it can by replace by any other hybrid motors.
Lead screw is Tr3.5*4mm pitch trapezoidal screw.
About the encoder, it’s high resolution optical encoder, and we have 500, 1000 and 2000 PPR for you to choose.
PPR means pulse per revolution.
For example, if we use 1000 PPR encoder, when the motor spins one turn, encoder with generate 1000 pulse signals, and it’s very high precision.
This motor is very helpful for high precision control, and closed loop system.
Motor Parameters:
| Motor type | Hybrid stepper motor |
| Motor size | 35mm (NEMA14) |
| Step angle | 1.8°/step |
| Screw lead | 2.54mm |
| Phase number | 2 phases (Bipolar) |
| Minimal Thrust | 11KG |
Typical applications:
* Medical Equipment
* Linear Robotic Control
* Precision Calibration
* High Precision Valve
* Other Precise Position Movement
Plus tt has extra low noise and high stability.
Design Drawing (Unit:mm)
Competitive Advantage
-
High quality and the best price.
-
Fast deliver,storage company and rich inventory
-
Near Shanghai port, the traffic is very convenient.
Product Detail Presentation
Different shaft design:
Captive & Non-Captive & External driving
Pushing force/thrust curve VS. Screw lead:
