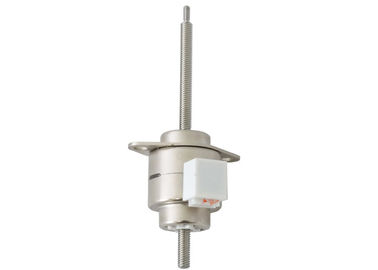

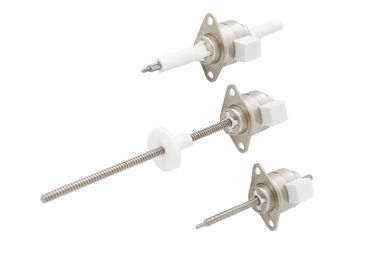

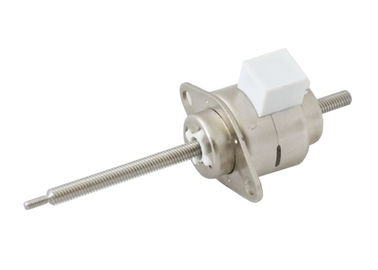

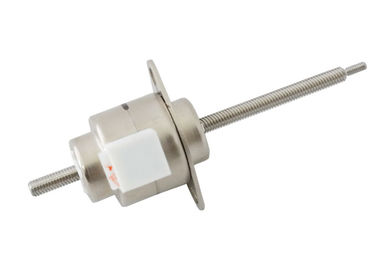

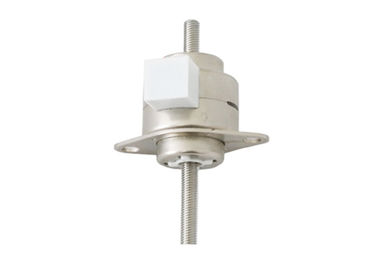

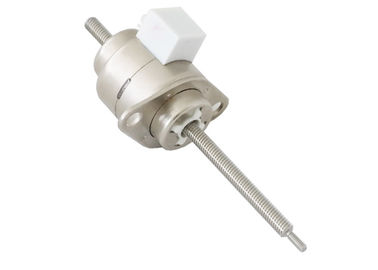

Non Captive bipolar 2 phase 4 wire miniature high precision linear stepper motor 5V DC linear actuator screw motor

  • Non Captive bipolar 2 phase 4 wire miniature high precision linear stepper motor 5V DC linear actuator screw motor
  • Non Captive bipolar 2 phase 4 wire miniature high precision linear stepper motor 5V DC linear actuator screw motor
  • Non Captive bipolar 2 phase 4 wire miniature high precision linear stepper motor 5V DC linear actuator screw motor
  • Non Captive bipolar 2 phase 4 wire miniature high precision linear stepper motor 5V DC linear actuator screw motor
  • Non Captive bipolar 2 phase 4 wire miniature high precision linear stepper motor 5V DC linear actuator screw motor
  • Non Captive bipolar 2 phase 4 wire miniature high precision linear stepper motor 5V DC linear actuator screw motor
Place of Origin China
Brand Name VIC-TECH
Certification RoHS
Model Number PM20L-019L-Fixed shaft
Minimum Order Quantity 1Unit
Price $6.5~$30/Unit
Packaging Details Standard export package, or can be customized
Delivery Time 15-30 work days
Payment Terms Western Union, T/T, L/C, MoneyGram
Supply Ability 1000000 Units/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Resistance 13Ω±10% Phase 2 For 4
Type Permanent Magnet Holding Torque 20N
Step Angle(degrees) 7.5° Voltage 5V
Max Stroke 31 Mm
Highlight

Miniature Linear Stepper Motor

,

Non Captive Linear Stepper Motor

,

5V Linear Actuator Stepper Motor
Leave a Message
Product Description

PM20 2 Phase 4 Wire Miniature Linear Stepper Motor 5V 12V Non-Captive Type DC Linear Actuator Screw Motor

SM20-019L- Non-captive is a Stepper motor whit a lead screw, when rotor running CW or CCW,the lead screw will go forword or backword. at the same time ,the lead will rotating.

motor stepper step angle is 7.5 degree, lead pitch is 0.6096mm, when motor stepper rotate one step, the lead move 0.0254mm



This product is a patented product of the company. It converts the rotation of the motor into a linear motion through the relative movement of the internal rotor and the screw. It is mainly used in valve control, automatic buttons, medical equipment, textile machines, robots and other related fields.
At the same time, the external wiring part can use four terminal posts (light pins) or connecting wires, or FPC FFC PCB, etc. according to customer requirements.
The output part is linear.
Our team has more than 10 years of stepper motor design, development and production experience, so we can achieve product development and auxiliary design according to the special needs of customers!
Customer needs are our efforts, please feel free to contact us!
Non Captive bipolar 2 phase 4 wire miniature high precision linear stepper motor 5V DC linear actuator screw motor 0

Mechanical Dimension:MM

Non Captive bipolar 2 phase 4 wire miniature high precision linear stepper motor 5V DC linear actuator screw motor 1

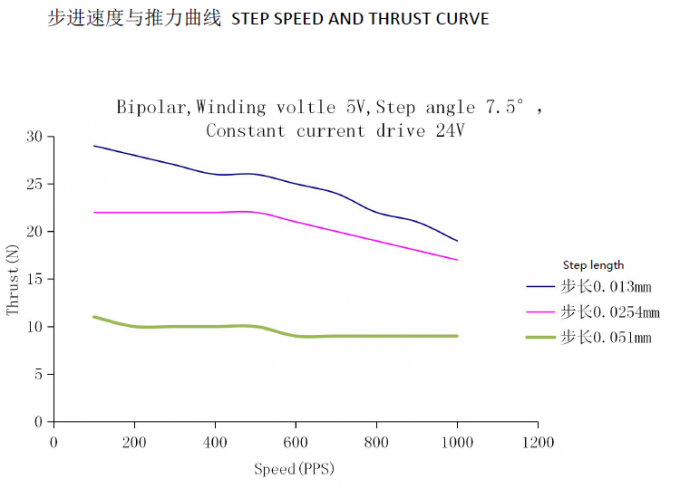

STEP SPEED AND THRUST CURVE



图片 7

图片 8

图片 9

图片 10

Technical Features


This product is a patented product of the company. It converts the rotation of the motor into a linear motion through the relative
movement of the internal rotor and the screw. It is mainly used in valve control, automatic buttons, medical equipment, textile
machines, robots and other related fields.
At the same time, the external wiring part can use four terminal posts (light pins) or connecting wires, or FPC FFC PCB, etc.
according to customer requirements.
The output part is linear.

Typical Applications

  • Medical Equipment

  • Automatic Control

  • 3D Printer

  • Precision Calibration

  • Precision Fluid Measurement

  • Precise Position Movement

Specifications

Product Name

PM20  linear stepper motor

Model

SM20-019L-Non-captive

Resistance

13Ω±10%

Pull in frequency

600PPS

The Mark Thrust

 20N

Inductance

4.5REF (mH)

Mounting pitch

27±0.2 mm

Mounting aperture

φ3mm (Through hole)

Axial height

31 mm

Insulation Class

class E

lead wrie

UL 1061 AWG26

OEM & ODM Srvice

Available



Customization service


The motor can customize the normal screw stroke,
Connectors and outlet boxes can be customized according to customer requirements
The screw rod can also customize the nut



Competitive Advantage

  • High quality and the best price.

  • Fast deliver,storage company and rich inventory

  • Near Shanghai port, the traffic is very convenient.

Product Detail Presentation

Non Captive bipolar 2 phase 4 wire miniature high precision linear stepper motor 5V DC linear actuator screw motor 6



Tags:

high torque stepper motor

micro linear stepper motor

electric linear actuator motor
