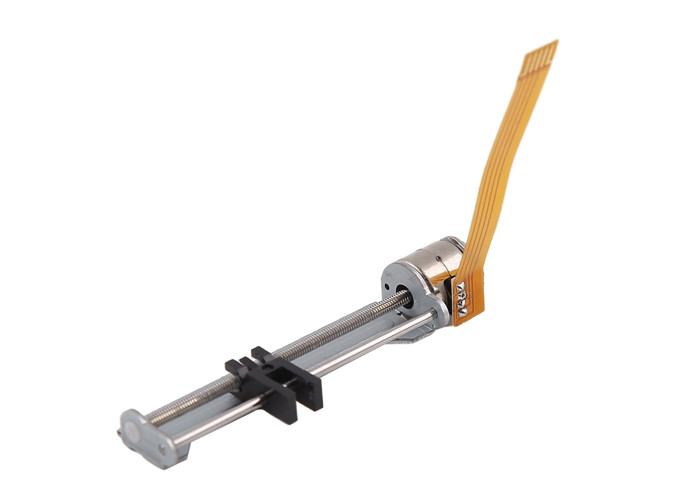

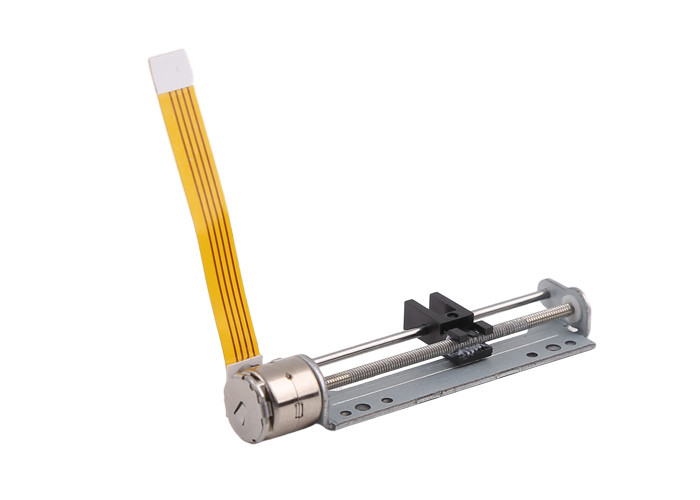

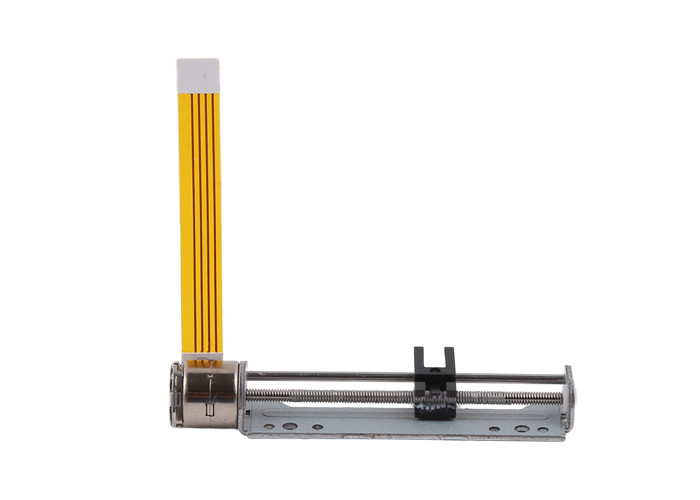

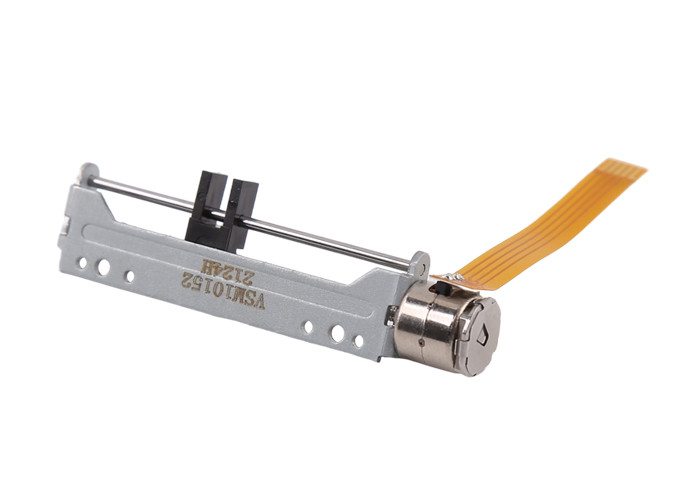

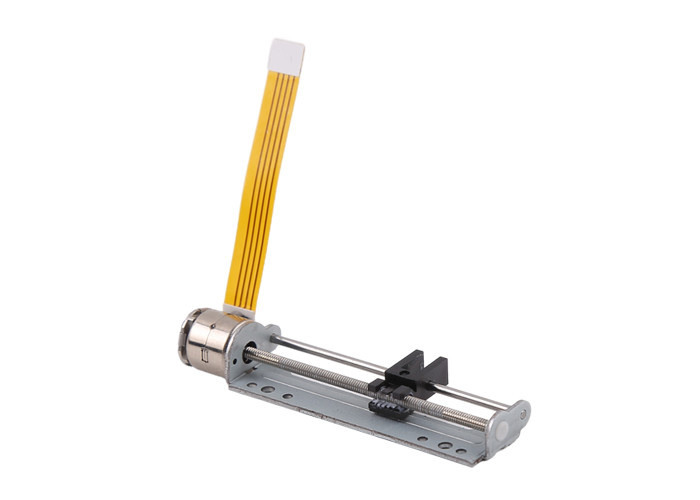

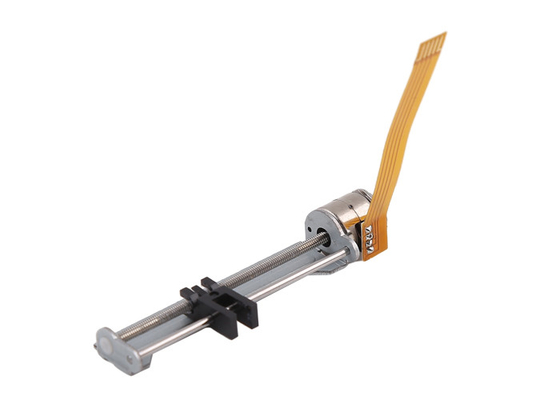

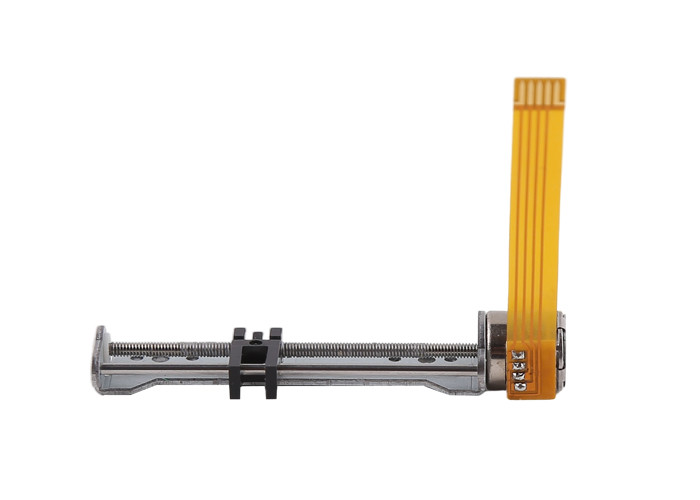

10mm Micro Permanent Magnet Linear Stepper Motor With Screw Slider

  • 10mm Micro Permanent Magnet Linear Stepper Motor With Screw Slider
  • 10mm Micro Permanent Magnet Linear Stepper Motor With Screw Slider
  • 10mm Micro Permanent Magnet Linear Stepper Motor With Screw Slider
  • 10mm Micro Permanent Magnet Linear Stepper Motor With Screw Slider
  • 10mm Micro Permanent Magnet Linear Stepper Motor With Screw Slider
  • 10mm Micro Permanent Magnet Linear Stepper Motor With Screw Slider
  • 10mm Micro Permanent Magnet Linear Stepper Motor With Screw Slider
Place of Origin Jiangsu, China (Mainland)
Brand Name VIC-TECH
Certification RoHS
Model Number VSM10152
Minimum Order Quantity 1Unit
Price $3~$8/Unit
Packaging Details Selling Units: Single item plastic box inner , outer paper box Package: single carton packing, 100 - 1000 pieces per box. Lead Time : 30 Days After Deposit
Delivery Time 15-30 work days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 1000000 Units/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Step Angle(degrees) 10 Degrees Phase 2
Voltage 3.3V Resistance 10±10% Ω
Weight 10 G Rotation CW/CCW
Type Permanent Magnet
Highlight

Magnet Linear Stepper Motor

,

Screw Slider Linear Stepper Motor

,

Micro Permanent Magnet Motor
Leave a Message
Product Description

10mm Micro Permanent Magnet Linear Stepper Motor With Screw Slider

VSM10152 is a precision screw motor with a diameter of 10mm and a 0.4mm pitch screw on the output shaft. The screw is supported by the screw and rotates into thrust.

The motor has a step angle of 18 degrees and runs 20 steps per week, so the displacement resolution can reach 0.02mm, achieving precise control.

The executing agency adopts a segmented driving method to meet the requirements.

If you need this motor, you can email me anytime.

10mm Micro Permanent Magnet Linear Stepper Motor With Screw Slider 0



Mechanical Dimension:MM

10mm Micro Permanent Magnet Linear Stepper Motor With Screw Slider 1

Typical Applications

  • Intelligent Security Products

  • Camera Lenses

  • Door Locks

  • Wearable device



Specifications

Product Name 10mm micro stepper motor
Model VSM10152
Rated Voltage 3.3 V DC

Coil Resistance

10±10%Ω

No.Of Phases

2 Phases

Step Angle

18°

MAX. STARTING FREQUENCY

1000 PPS min. (AT 3.3 V DC)

MAX. SLEWING FREQUENCY

1200 PPS min. (AT 3.3 V DC)

PULL IN TORQUE

3.5 gf-cm min. (AT 500 PPS , 3.3V DC)

PULL OUT TORQUE

4.5gf-cm min. (AT 500 PPS , 3.3V DC)

INSULATION CLASS

 CLASS E FOR COILS

INSULATION STRENGTH

300V AC FOR ONE SECOND

INSULATION RESISTENCE

50 MΩ (DC 100 V)

OPERATING TEMPERATURE RANGE

-20~+70℃

OEM & ODM SERVICE

AVAILABLE



Competitive Advantage

  • High quality and the best price.
  • Fast deliver,storage company and rich inventory
  • Near Shanghai port, the traffic is very convenient.





Type Of Wire Connect For Reference



Motor input method with Pin type, FPC, PCB, Lead wire etc.

These can be customized according to customer needs.

10mm Micro Permanent Magnet Linear Stepper Motor With Screw Slider 2

Type of Fixture Cover

The regular models are shown in the figure, and the special sizes can be customized.

10mm Micro Permanent Magnet Linear Stepper Motor With Screw Slider 3



Product Detail Presentation

10mm Micro Permanent Magnet Linear Stepper Motor With Screw Slider 410mm Micro Permanent Magnet Linear Stepper Motor With Screw Slider 5
