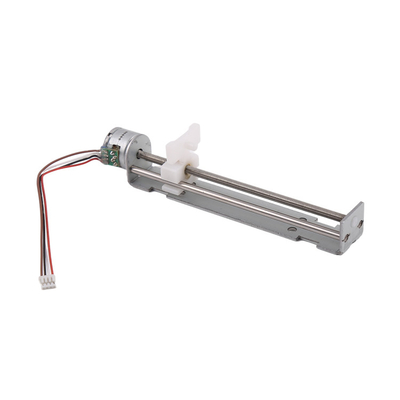

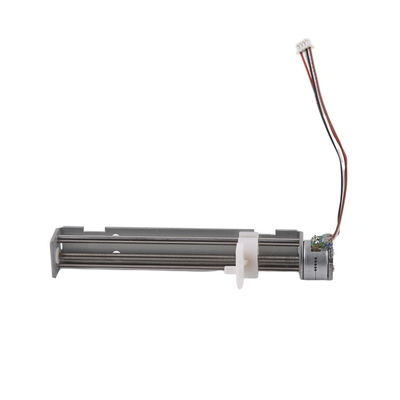

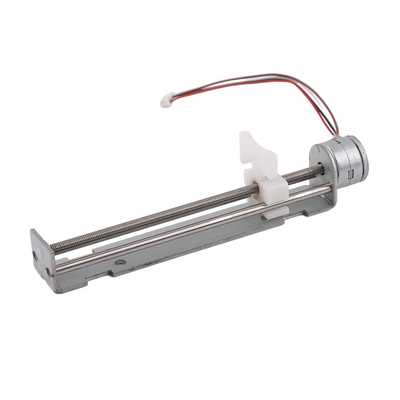

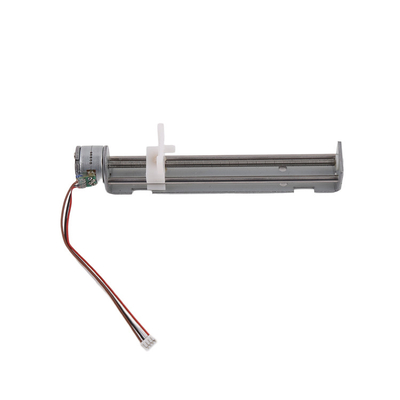

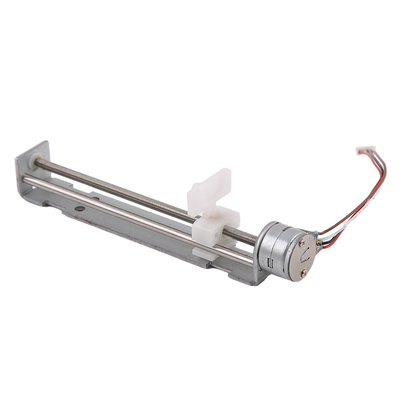

Stepper Motor With Lead Screw Slide for Linear Movement Best Linear Stepper Motor s
| Place of Origin | China |
|---|---|
| Brand Name | VIC-TECH |
| Certification | RoHS |
| Model Number | VSM15-TBD |
| Minimum Order Quantity | 1Unit |
| Price | $6.5~$30/Unit |
| Packaging Details | Standard export package, or can be customized |
| Delivery Time | 15-30 work days |
| Payment Terms | Western Union, T/T, L/C, MoneyGram |
| Supply Ability | 1000000 Units/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Motor Size | 15mm | Driving Voltage | 5-12 VDC |
|---|---|---|---|
| Driving Method | Bi-polar 2-2 Phase | Max Response Frequency | Over 1600 PPS |
| Step Angle | 18 ° | Lead Screw Type | M3*0.5Pitch Thread |
| Pull-out Thrust | Over 500 Gf At 700 PPS | Motor Type | Stepper Motor With Lead Screw Slide |
| Highlight | Best Linear Stepper Motor,Lead Screw Slide Stepper Motor,Linear Movement Stepper Motor |
||
Product Description
Product Description:
A Linear Stepper Motor is a precision linear stepper motor controller that can be used in automotive applications, allowing for precise, smooth movement in a straight line. It has a step angle of 18°, and is driven by a bi-polar 2-2 phase method with a driving voltage of 5-12 VDC. With a maximum response frequency of over 1600 PPS, this motor is designed for high-speed and accurate linear motion. It is suitable for a variety of applications, such as in robotics, medical equipment, and manufacturing.
This Linear Stepper Motor is highly reliable and durable, and is designed to work for long periods of time. It is capable of running in both forward and backward directions, providing versatile and flexible motion control. With its precision linear step motor control, high-speed response, and durability, this motor is an ideal choice for any application requiring linear motion control.
Features:
- Product Name: Linear Stepper Motor
- Coil resistance: 15 Ohm
- Lead screw type: M3*0.5Pitch Thread
- Stroke: 80mm
- Movement type: Running In A Straight Line (forward and Backward)
- Lead pitch: M3 Pitch 0.5mm
- Uses: Linear Stepper Motor in Prosthetics
- Size: 15mm Linear Stepper Motor
- Performance: High Torque Linear Stepper Motor
Technical Parameters:
| Property | Value |
|---|---|
| Lead screw type | M3*0.5Pitch Thread |
| Coil resistance | 15 Ohm |
| Motor size | 15mm |
| Max response frequency | Over 1600 PPS |
| Max Starting frequency | Over 1100 PPS |
| Step angle | 18° |
| Pull-out thrust | Over 500 Gf At 700 PPS |
| Movement type | Running In A Straight Line (forward And Backward) |
| Motor type | Stepper Motor With Lead Screw Slide |
| Stroke | 80mm |
Applications:
Linear Stepper Motor
VIC-TECH's Linear Stepper Motor with Model Number: VSM15-TBD is a perfect solution for robotics, UAVs and CNC Machines. It is certified by RoHS with minimum order quantity of 1Unit and a price range from $6.5~$30/Unit. It is packed in standard export package, or can be customized. Delivery time is 15-30 work days, payments accepted include Western Union, T/T, L/C, MoneyGram. The supply ability is 1000000 Units/year. It has Lead screw type of M3*0.5Pitch Thread and Max Starting frequency of Over 1100 PPS. It is of 15mm size with Lead pitch of M3 Pitch 0.5mm. Movement type is Running In A Straight Line (forward And Backward).
Customization:
VIC-TECH's Linear Stepper Motor is an ideal solution for precise linear motion control. It is designed for medical devices, robotics, and precision linear motion control applications. With a model number of VSM15-TBD, it is certified with RoHS and comes with a minimum order quantity of 1 unit. It has a coil resistance of 15 ohm and a pull-out thrust of over 500 Gf at 700 PPS. The lead screw type is M3*0.5Pitch Thread and it features a stroke of 80mm. It also has a max response frequency of over 1600 PPS.
VIC-TECH's Linear Stepper Motor is perfect for applications that require thrust control, medical linear stepper motors, and linear stepper motor for robotics. It has a competitive price range of $6.5 to $30 per unit and is packaged with standard export package or can be customized as per your request. Delivery time is within 15-30 work days and payment terms include Western Union, T/T, L/C, and MoneyGram. We have a supply ability of 1000000 units per year.
Support and Services:
Linear Stepper Motor Technical Support and Service
We provide technical support and service for our Linear Stepper Motor products. Our experienced team of engineers and technicians can provide you with all the necessary resources to optimize your project.
We offer technical advice and assistance on installation, commissioning, maintenance, and troubleshooting for our Linear Stepper Motors. We also provide training and education packages to ensure you get the most out of your product.
We offer a full range of spare parts and accessories to ensure your Linear Stepper Motor is working properly. We also provide a comprehensive warranty to ensure your product is protected against any manufacturing defects.
If you have any questions or need assistance with our Linear Stepper Motor products, please contact us directly and we will be happy to help.
