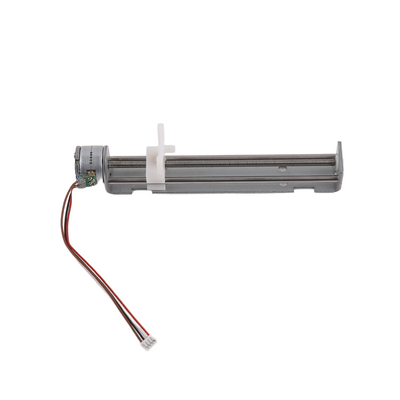

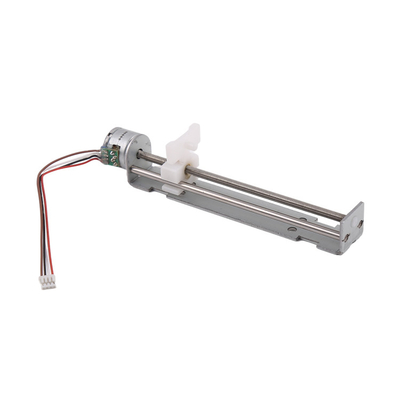

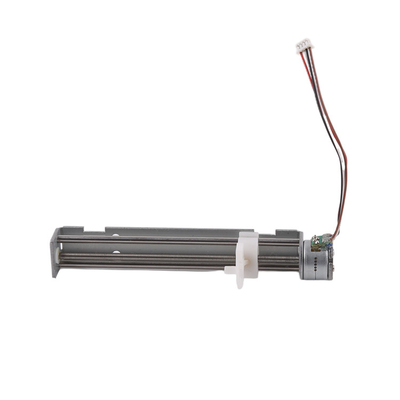

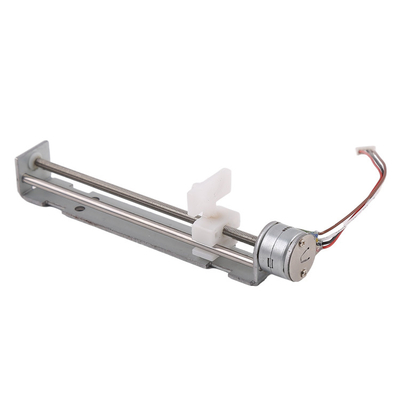

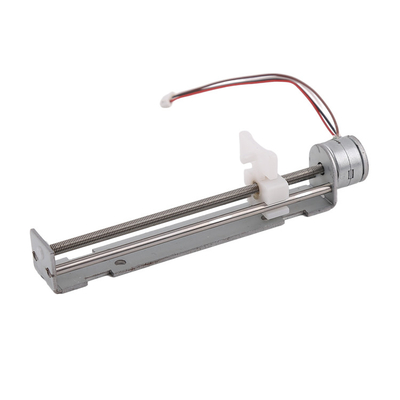

M3*0.5Pitch Thread Linear Stepper Motor Achieving Over 500 Gf Pull-out Thrust at 700 PPS

  • M3*0.5Pitch Thread Linear Stepper Motor Achieving Over 500 Gf Pull-out Thrust at 700 PPS
  • M3*0.5Pitch Thread Linear Stepper Motor Achieving Over 500 Gf Pull-out Thrust at 700 PPS
  • M3*0.5Pitch Thread Linear Stepper Motor Achieving Over 500 Gf Pull-out Thrust at 700 PPS
  • M3*0.5Pitch Thread Linear Stepper Motor Achieving Over 500 Gf Pull-out Thrust at 700 PPS
  • M3*0.5Pitch Thread Linear Stepper Motor Achieving Over 500 Gf Pull-out Thrust at 700 PPS
Place of Origin China
Brand Name VIC-TECH
Certification RoHS
Model Number VSM15-TBD
Minimum Order Quantity 1Unit
Price $6.5~$30/Unit
Packaging Details Standard export package, or can be customized
Delivery Time 15-30 work days
Payment Terms Western Union, T/T, L/C, MoneyGram
Supply Ability 1000000 Units/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Pull-out Thrust Over 500 Gf At 700 PPS Max Response Frequency Over 1600 PPS
Max Starting Frequency Over 1100 PPS Motor Type Stepper Motor With Lead Screw Slide
Movement Type Running In A Straight Line (forward And Backward) Coil Resistance 15 Ohm
Stroke 80mm Lead Pitch M3 Pitch 0.5mm
Highlight

700 PPS Linear Stepper Motor

,

M3*0.5Pitch Linear Stepper Motor

,

500 Gf Linear Stepper Motor
Leave a Message
Product Description

Product Description:

Linear Stepper Motors are specialized motors that are designed for applications that require movement in a straight line, such as wind turbines. These motors provide precise linear motion, with a pull-out thrust of over 500 Gf at 700 PPS, a coil resistance of 15 Ohm, a step angle of 18° and a max response frequency of over 1600 PPS. These motors offer a high degree of accuracy and repeatability in a range of applications and are ideal for high-precision linear motion requirements.



Features:

  • Product Name: Linear Stepper Motor
  • Driving method: Bi-polar 2-2 Phase
  • Lead pitch: M3 Pitch 0.5mm
  • Step angle: 18°
  • Stroke: 80mm
  • Movement type: Running In A Straight Line (forward And Backward)
  • Uses: Linear Stepper Motor in CNC Machines, Linear Stepper Motor for UAVs, Linear Stepper Motor for Robotics


Technical Parameters:

Technical Parameter Description
Movement type Running In A Straight Line (forward And Backward)
Lead Pitch M3 Pitch 0.5mm
Motor type Stepper Motor With Lead Screw Slide
Driving voltage 5-12 VDC
Max response frequency Over 1600 PPS
Step angle 18°
Pull-out thrust Over 500 Gf At 700 PPS
Driving method Bi-polar 2-2 Phase
Stroke 80mm
Motor size 15mm


Applications:

Linear Stepper Motor, an advanced product of VIC-TECH VSM15-TBD, is widely used in numerous applications such as UAVs, thrust control, automation, 3D printing, etc. With RoHS certification, it has a minimum order quantity of 1 Unit, and the price ranges from 6.5 to 30 US dollars per unit. The packaging details are standard export package, or can be customized. The delivery time is 15-30 work days, and the payment terms are Western Union, T/T, L/C, and MoneyGram. The supply ability is up to 1,000,000 Units per year. The stroke is 80mm, the step angle is 18°, the max starting frequency is over 1100 PPS, the motor size is 15mm, and the coil resistance is 15 Ohm.



Customization:



VIC-TECH Linear Stepper Motor
Brand Name: VIC-TECH
Model Number: VSM15-TBD
Place of Origin: China
Certification: RoHS
Minimum Order Quantity: 1 Unit
Price: $6.5~$30/Unit
Packaging Details: Standard export package, or can be customized
Delivery Time: 15-30 work days
Payment Terms: Western Union, T/T, L/C, MoneyGram
Supply Ability: 1000000 Units/year
Driving voltage: 5-12 VDC
Movement type: Running In A Straight Line (forward And Backward)
Lead pitch: M3 Pitch 0.5mm
Step angle: 18°
Stroke: 80mm


VIC-TECH Linear Stepper Motor Application

  • Linear Stepper Motor in CNC Machines
  • Linear Stepper Motor in Prosthetics
  • Linear Stepper Motor for AGVs





Support and Services:

Technical Support and Service for Linear Stepper Motor

We are committed to providing our customers with products of the highest quality and value. We offer a range of technical support and service options to ensure that you get the best out of your Linear Stepper Motor.

Technical Support

Our team of highly experienced technical engineers are available to answer any questions you may have about our Linear Stepper Motor. We will provide advice and support on installation, operation and maintenance of the product.

Service and Repairs

We provide a comprehensive repair service for our Linear Stepper Motor. We have a team of qualified engineers who will diagnose any issues and carry out repairs quickly and efficiently.
