12V N20 Micro DC Brush Motor Horizontal Gear Reducer with Encoder

  • 12V N20 Micro DC Brush Motor Horizontal Gear Reducer with Encoder
  • 12V N20 Micro DC Brush Motor Horizontal Gear Reducer with Encoder
  • 12V N20 Micro DC Brush Motor Horizontal Gear Reducer with Encoder
  • 12V N20 Micro DC Brush Motor Horizontal Gear Reducer with Encoder
  • 12V N20 Micro DC Brush Motor Horizontal Gear Reducer with Encoder
  • 12V N20 Micro DC Brush Motor Horizontal Gear Reducer with Encoder
  • 12V N20 Micro DC Brush Motor Horizontal Gear Reducer with Encoder
Place of Origin Jiangsu, China (Mainland)
Brand Name VIC-TECH
Certification RoHS
Model Number N20-1812-302G-E
Minimum Order Quantity VIC-TECH
Price $3.2~$9/unit
Packaging Details Standard export package, or can be customized
Delivery Time 15-30 work days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 1000000Units per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Voltage 12 V DC Type DC Gear Motor With Encoder
Certification CE, ROHS Commutation Brush
No Load Speed(RPM) 48 Rpm No Load Current(A) 40 MA
Gear Ratio 1:302
Highlight

12V Micro DC Brush Motor

,

Encoder Micro DC Brush Motor
Leave a Message
Product Description

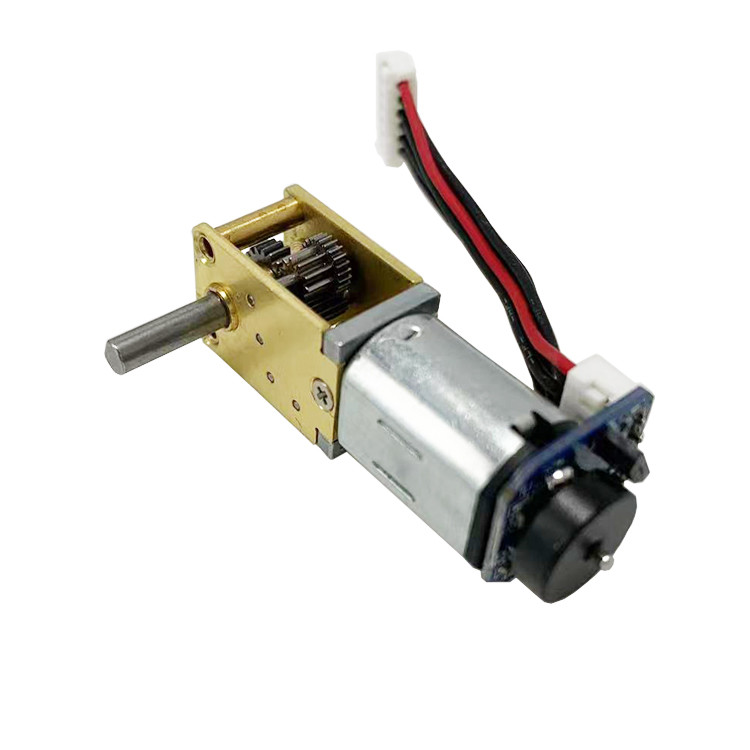

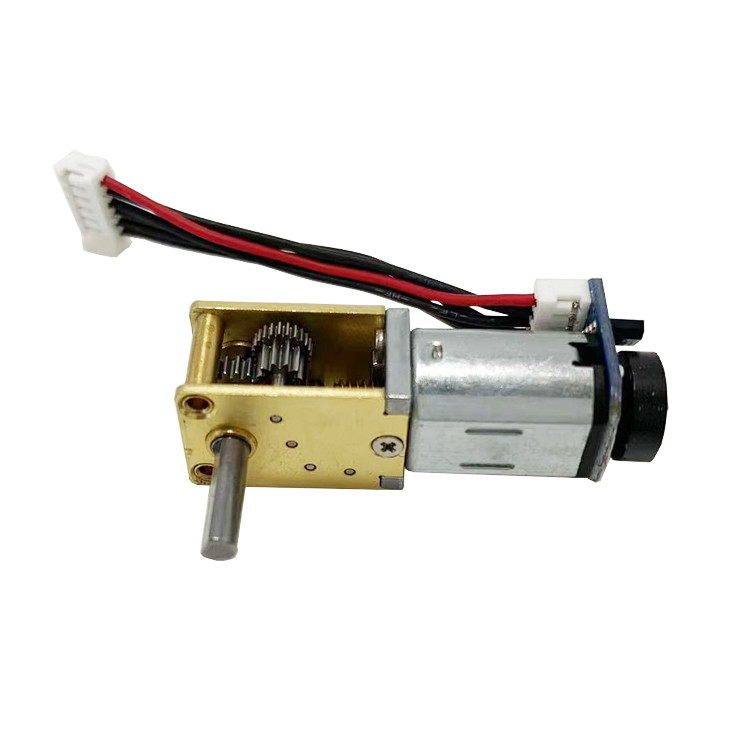

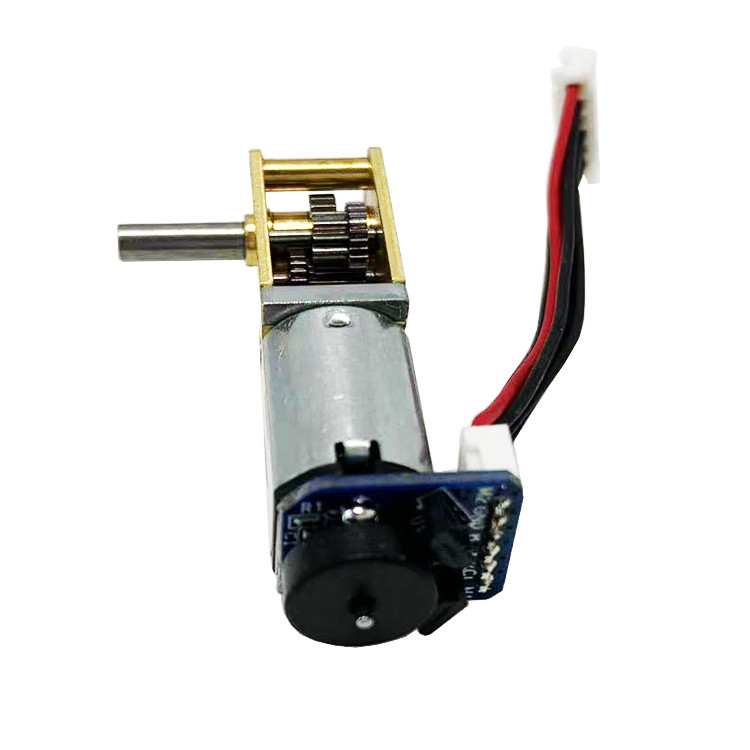

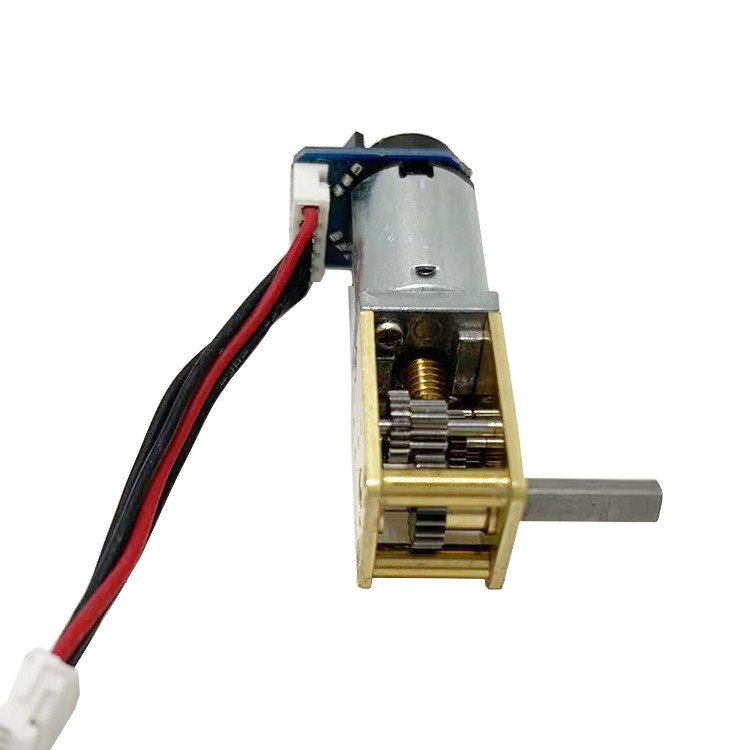

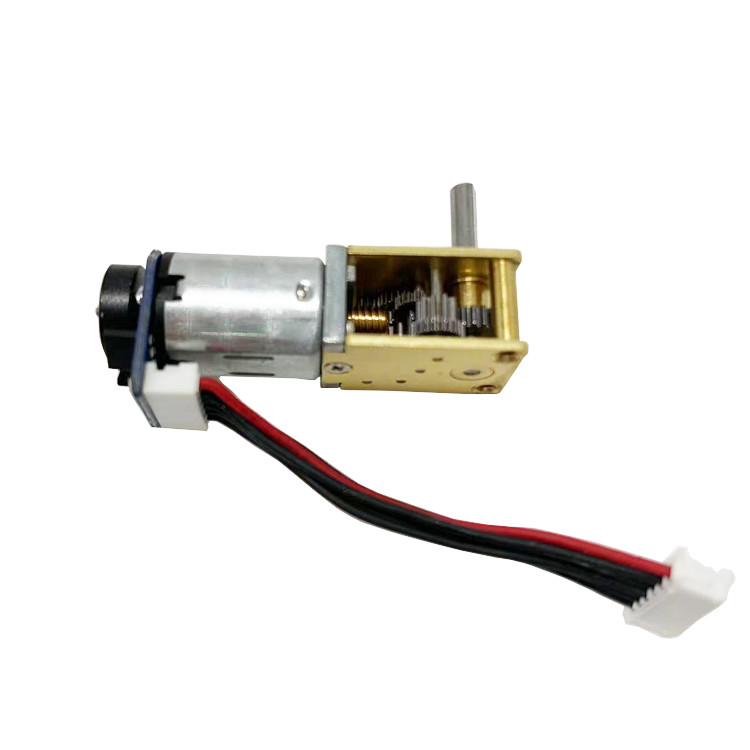

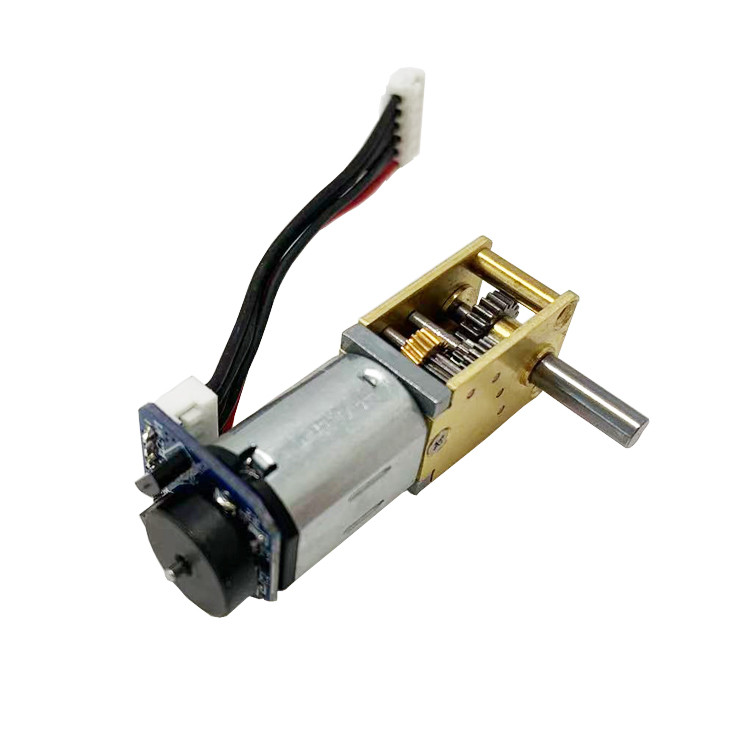

12V N20 Micro DC Brush Motor Horizontal Gear Reducer with Encoder

It is a DC reduction motor made of precious metal N20 brushed DC motor and precision metal reducer, with encoder.
12V N20 DC motor brush reduction motor, N20 DC reduction motor has beautiful appearance, small size, light weight, easy installation, long life, low noise technology, high energy saving rate, zero momentum, large torque and high precision.
1: 10 * 12 * 18mm gearbox, equipped with N20 permanent magnet DC motor
2: Meet EU environmental protection standards. Low energy consumption and low noise
3: Equipped with encoder. The number of pulses is 12 ppr
4: Reduction ratio: 1: 302
5: The product is suitable for: electronic door locks, smart switches, steam hair straighteners (water hair straighteners), label peelers, smart wearables, smart machine 3D printing equipment products, curling irons, safes, electric screwdrivers, display stands, etc.
Our team has more than 20 years of experience in micromotor design, development and production, and can realize product development and auxiliary design according to customer special needs!
If you need a motor, please feel free to contact us!

12V N20 Micro DC Brush Motor Horizontal Gear Reducer with Encoder 0



Mechanical Dimension:MM

12V N20 Micro DC Brush Motor Horizontal Gear Reducer with Encoder 1

Typical Applications

  • Office Automatic Equipments
  • Printer/paper Feeder
  • Bank Equipments
  • Safe Box
  • Ad Equipment
  • Household Appliances
  • Electtric Door Locks

Specifications



Product Name N20 DC motor
Model N20 Gear Motor with
Rated Voltage 12 V DC
No load speed 48RPM
No load curret 40mA
Load speed 38±10% RPM
Load current 95 mA
Load torque 300gf.cm
Stall torque 1.2kgf.cm
Stall current 0.25A
Gear ratio 302:1
Noise ＜50dB
Back lash 3 deg
Continuons life time 200 h


Product Detail Presentation



12V N20 Micro DC Brush Motor Horizontal Gear Reducer with Encoder 2
