NEMA 11 hybrid stepper motor 1.8 degree step angle 2-phase stepper motor with Anti-backlash nut
| Place of Origin | China |
|---|---|
| Brand Name | VIC-TECH |
| Certification | RoHS, ISO9001 |
| Model Number | 28C0208-085X |
| Minimum Order Quantity | 1Unit |
| Price | $54.5~$78.3/Unit |
| Packaging Details | Standard export package in corrugated carton (Mass production). |
| Delivery Time | 15-30 work days |
| Payment Terms | Western Union, T/T, L/C, MoneyGram |
| Supply Ability | 100000 Units/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Lead Screw | Tr4.77*10.16-8 Black TFE Coating | Linear Travel Per Step | 0.0508mm/step |
|---|---|---|---|
| Step Angle | 1.8° | Motor's Phases | 2 Phases |
| Lead Screw Lead | 10.16mm | ||
| Highlight | NEMA 11 hybrid stepper motor,1.8 degree hybrid stepper motor,2 phase hybrid stepper motor |
||
Product Description

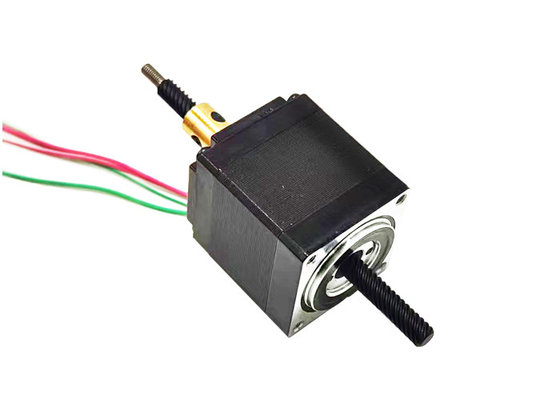

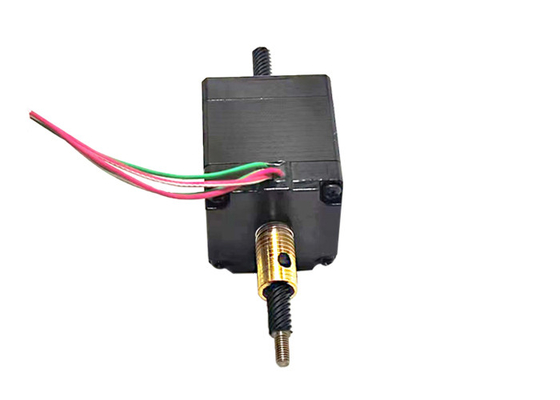

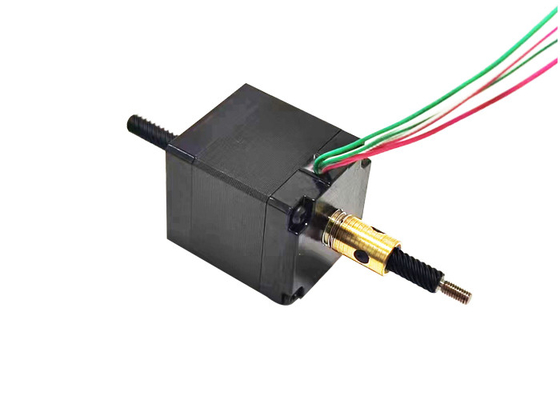

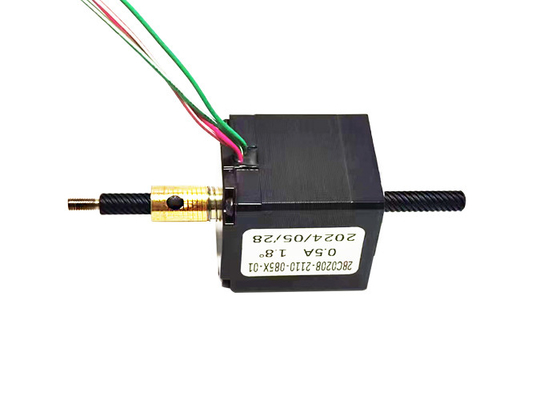

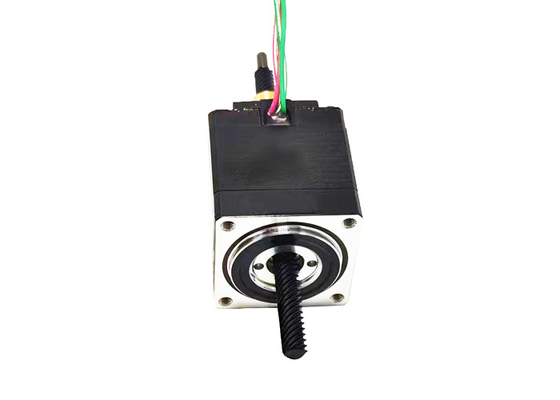

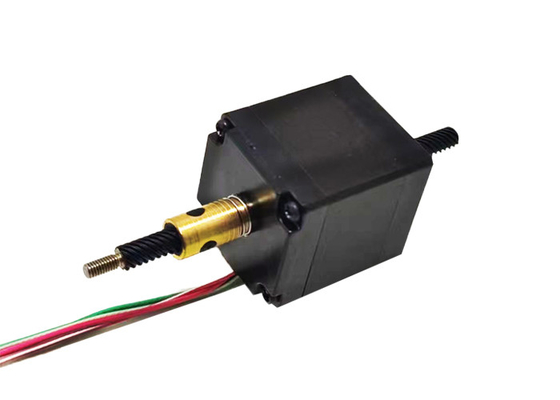

NEMA 11 hybrid stepper motor 1.8 degree step angle 2-phase stepper motor with Anti-backlash nut
Motortype: Hybrid stepper motorMotorsize:28mm* 32.2mm heightStep angle: 1.8°Lead screw type:Tr4.77*10.168Lead screwlead:10.16mm
Lead screw total length:85.68mm
With black TFE coating on lead screwWith anti-backlash nut
Our team has more than 20 years of experience in stepper motor design, development and production, and can realize product development and auxiliary design according to the special needs of customers!
Customer needs are our efforts, please feel free to contact us!
Design Layout (Unit:mm):
Parameter sheet:
|
Model No. |
28C0208-085X |
|
Lead screw diameter |
φ4.77mm |
|
Lead screw lead |
10.16mm |
|
Linear travel per step |
0.0508mm/step |
|
Motor’s phases |
2 phases |
|
Step Angle |
1.8° |
|
Rated current/phase |
0.5A |
|
Resistance/phase |
9.1Ω±10% |
|
Inductance/phase |
6.0mH±20% |
|
Insulation class |
B |
|
Insulation resistance |
100MΩ(500VDC) |
|
Heat rise |
80℃ |
| Operating Enviroment | -10℃~50℃；20%RH~90%RH |
| Storage Enviroment | -20℃~70℃；15%RH~90%RH |
Competitive Advantage
-
High quality and the best price.
-
Fast deliver,storage company and rich inventory
-
Near Shanghai port, the traffic is very convenient.
