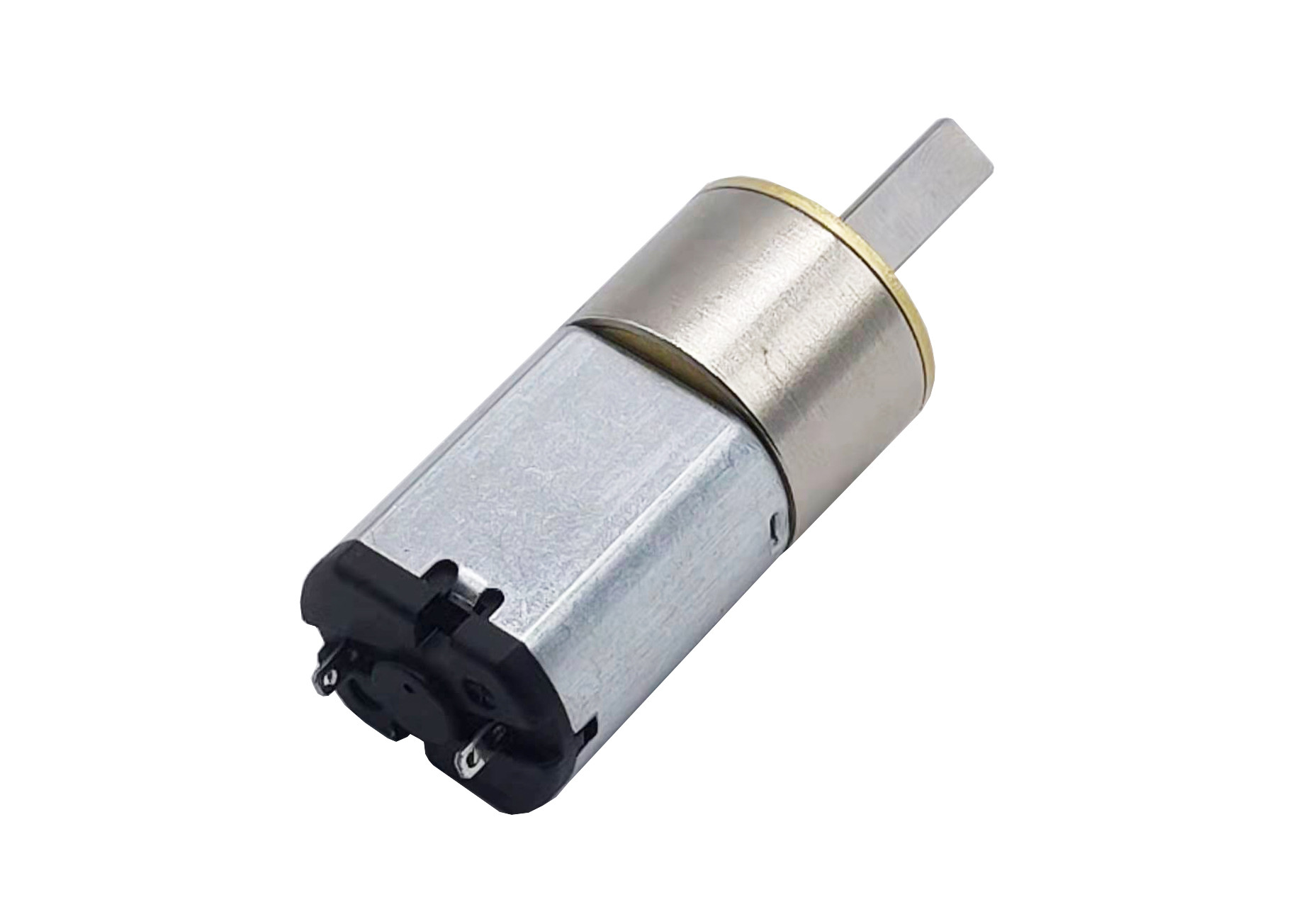

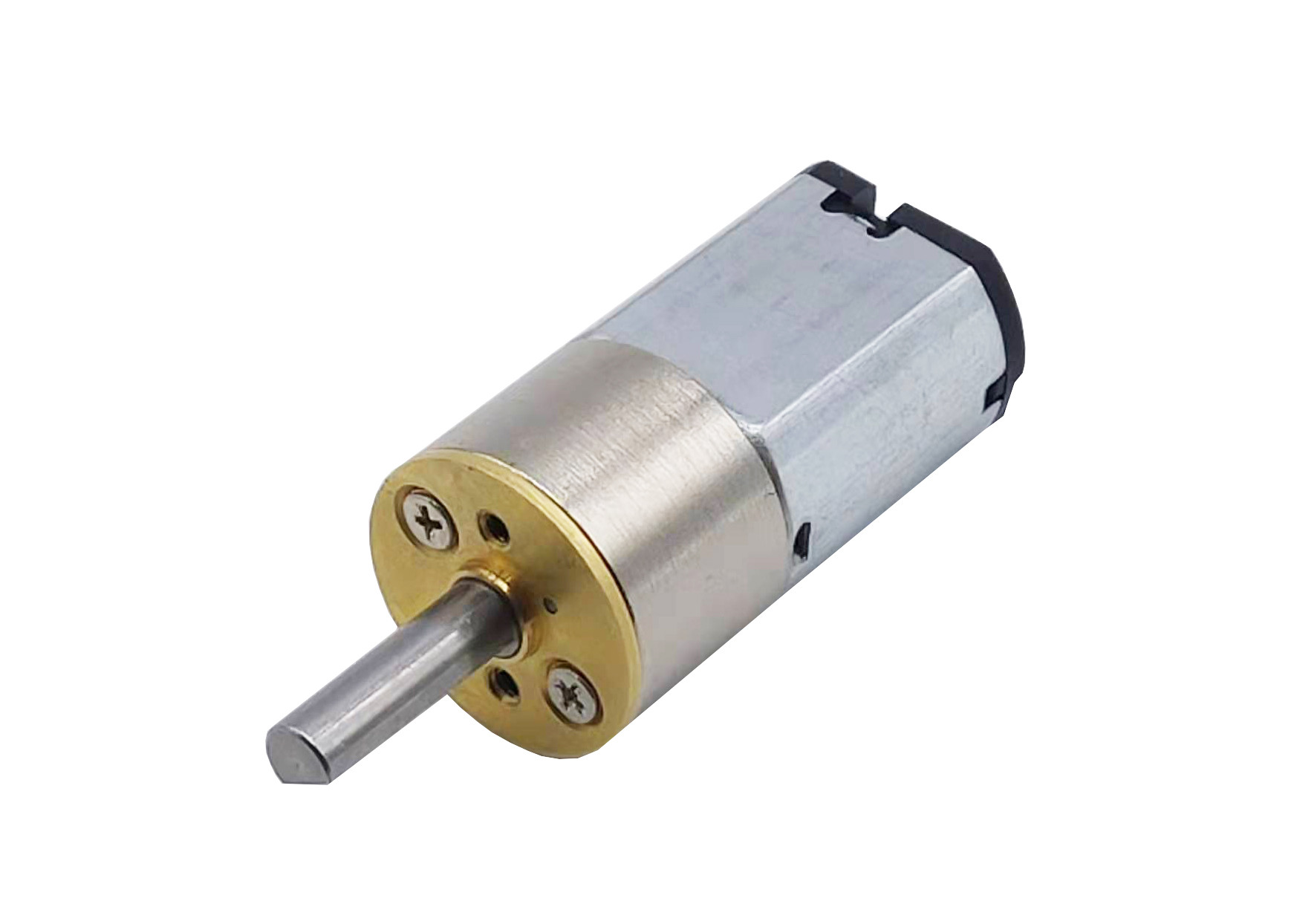

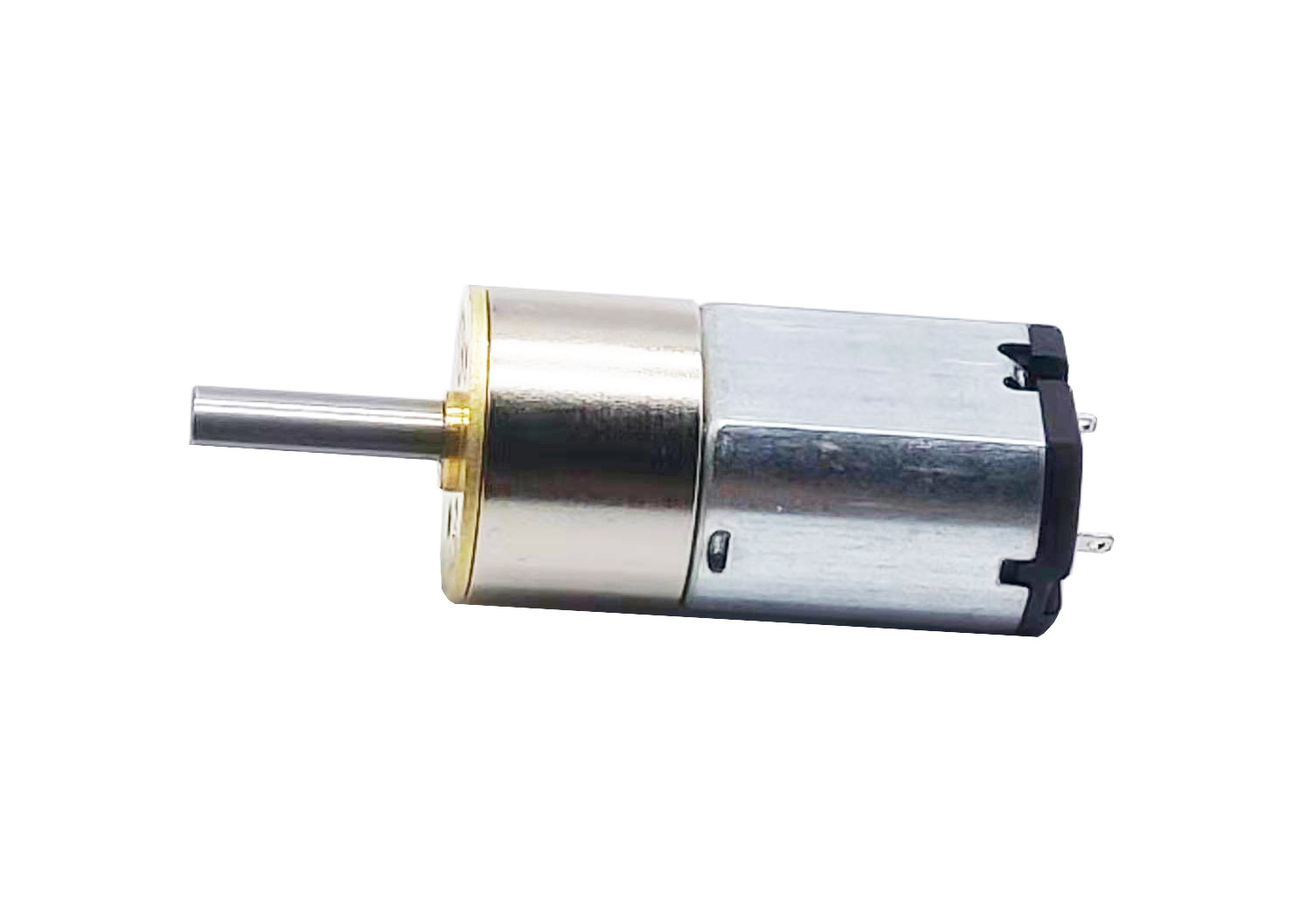

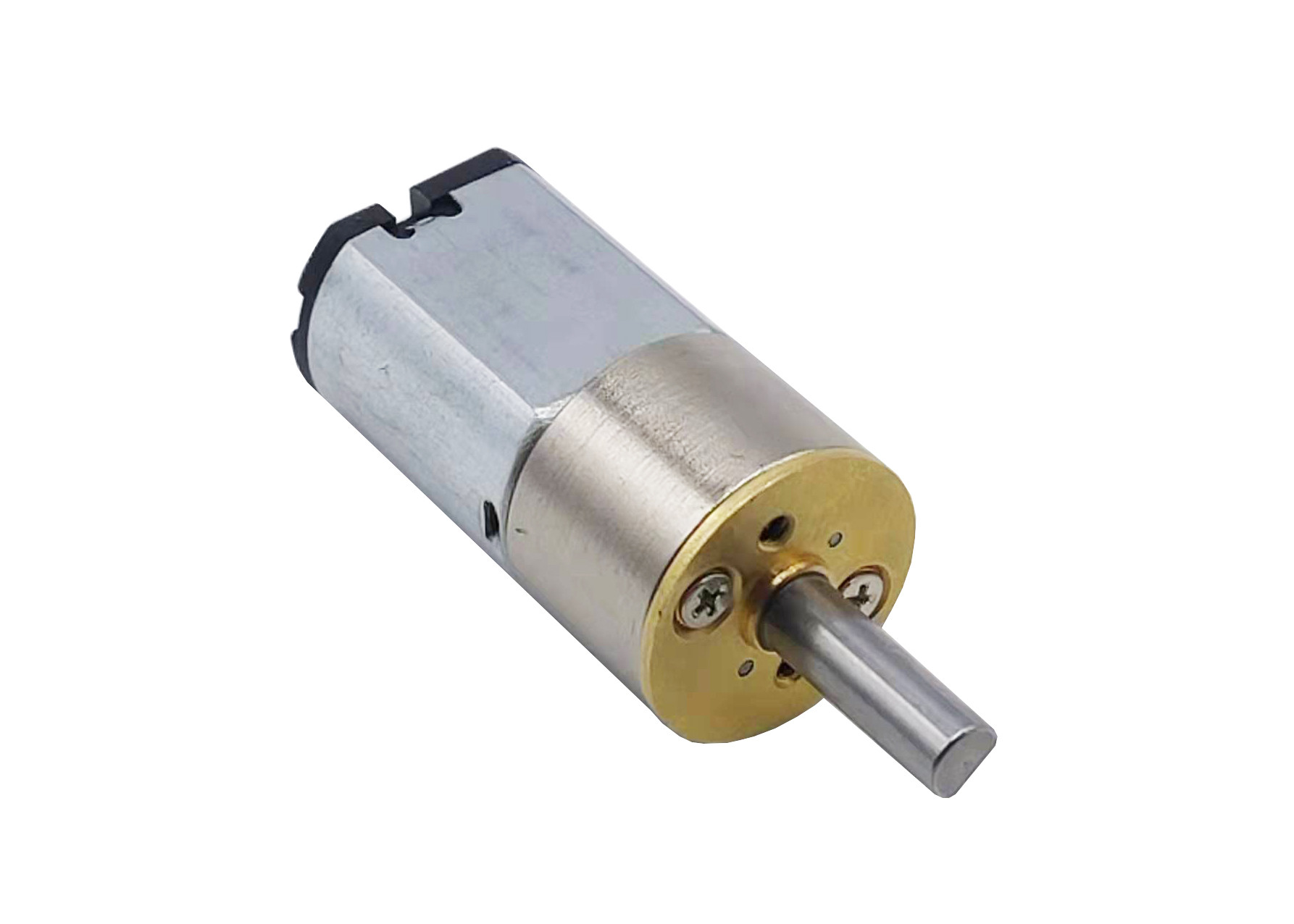

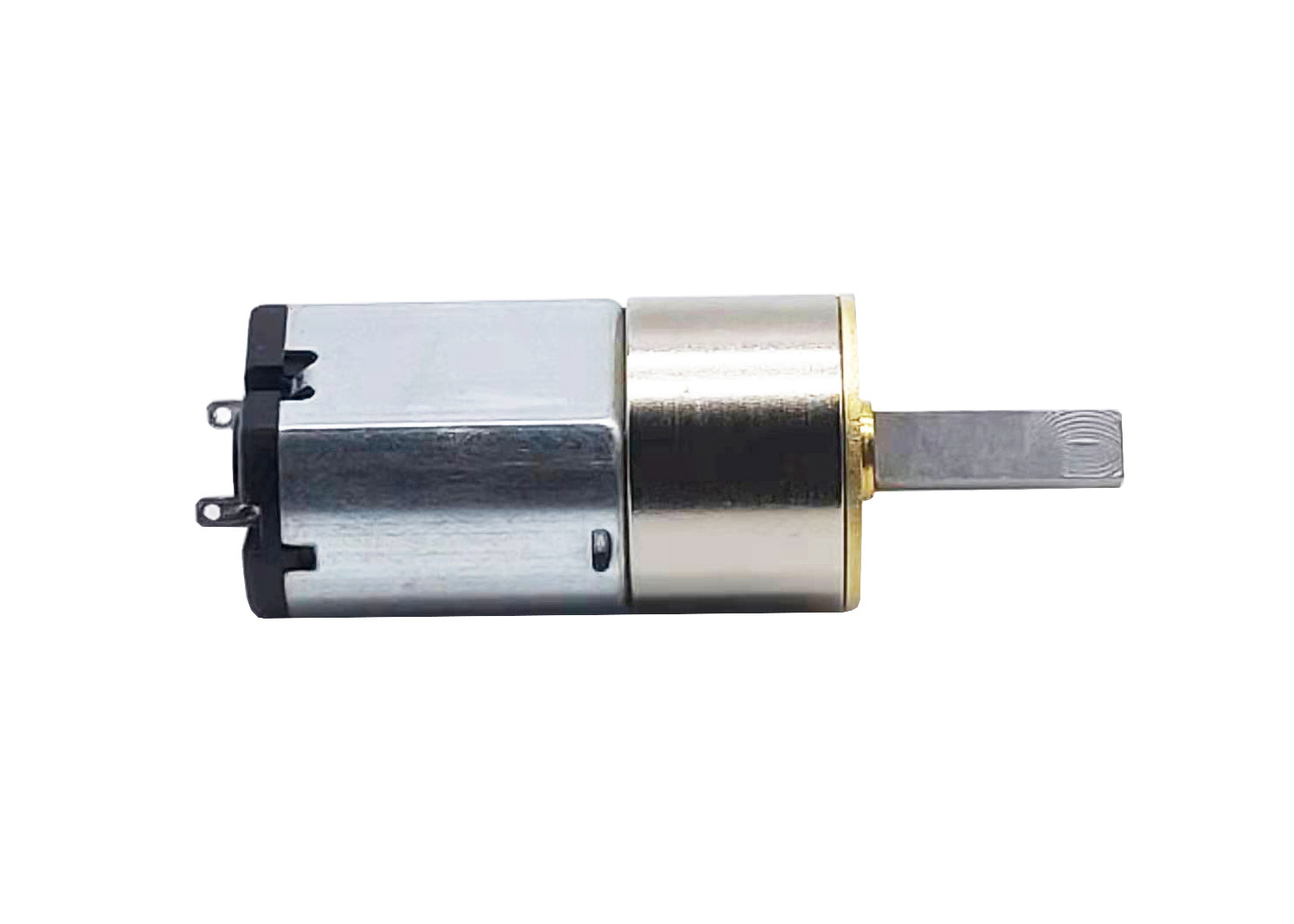

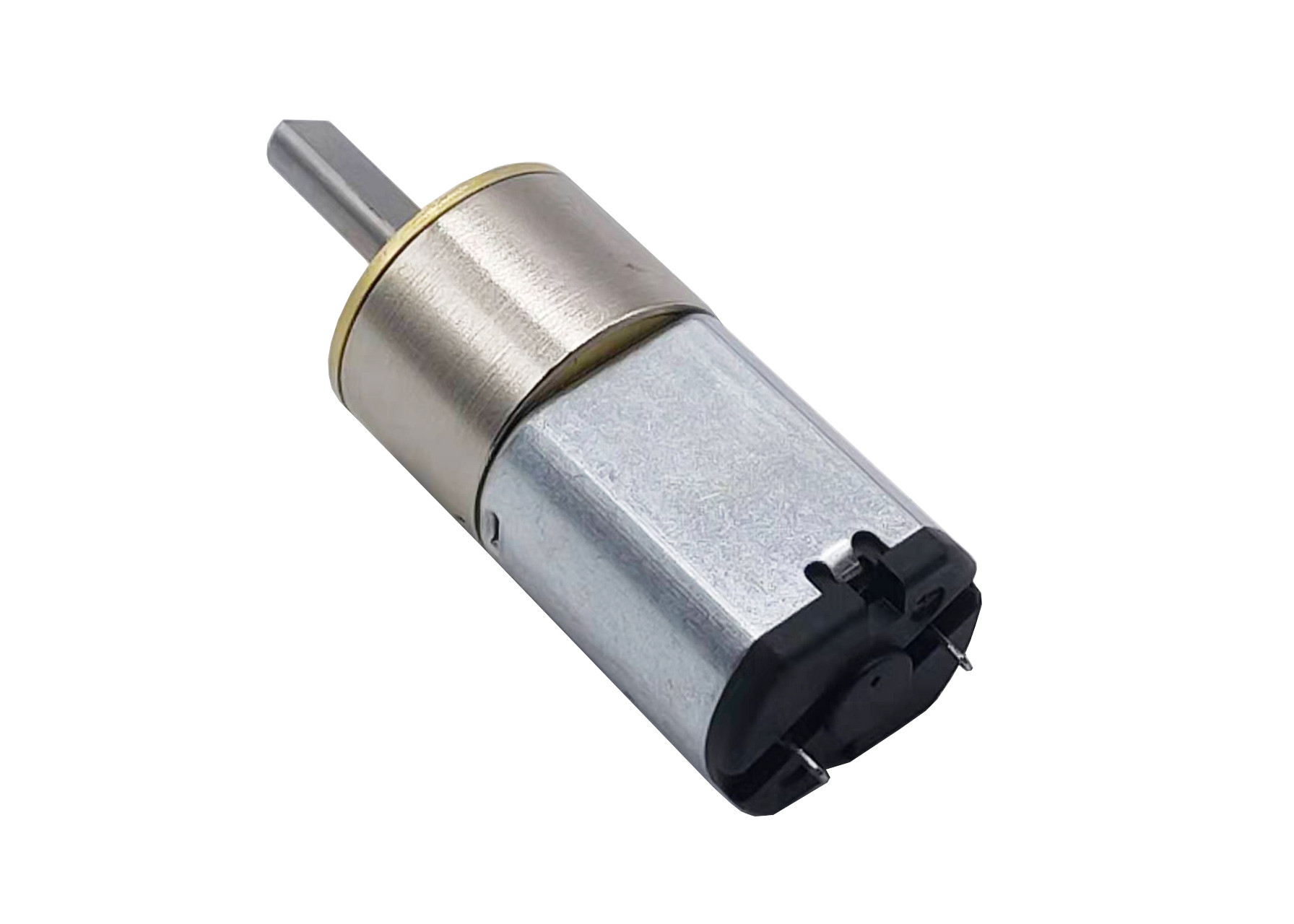

N30 Micro DC Brush Motor With Rotundity Gear Reducer Optional Gear Ratio
| Place of Origin | Jiangsu, China (Mainland) |
|---|---|
| Brand Name | VIC-TECH |
| Certification | RoHS |
| Model Number | GM16-030-297G-13D |
| Minimum Order Quantity | VIC-TECH |
| Price | $3.2~$6/unit |
| Packaging Details | Standard export package, or can be customized |
| Delivery Time | 15-30 work days |
| Payment Terms | T/T, Western Union, MoneyGram |
| Supply Ability | 1000000Units per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Driving Voltage | 3 V DC | Type | DC Motor |
|---|---|---|---|
| Commutation | Brush | Stall Current(A) | 2.3A |
| Gear Ratio | 1:10~1:350 | No Load Speed | 50 RPM |
| Highlight | Optional Gear Ratio DC Brush Motor,Rotundity Gear Reducer DC Brush Motor,N30 Micro DC Brush Motor |
||
Product Description
N30 Micro DC Brush Motor Horizontal Gear Reducer For Shared Bicycle Smart Lock
N30 DC circular motor, beautiful appearance, small size, light weight, easy installation, long life, low noise technology, high energy saving rate, zero momentum, large torque and high precision.
1: Circular gearbox, equipped with N30 permanent magnet DC motor
2: Meet EU environmental protection standards. Low energy consumption and low noise
3: Can be equipped with encoder. The number of pulses is 3ppr
4: Gearbox gear ratio: 1:10, 1:16, 1:20, 1:30, 1:35, 1:39, 1:50, 1:62, 1:66, 1:87, 1:102, 1:153, 1:169, 1:210, 1:243:1, 1:297, 1:350
Our team has more than 10 years of experience in micromotor design, development and production, and can realize product development and auxiliary design according to customer needs!
Your needs are our efforts, welcome to contact us at any time!
Mechanical Dimension:MM
Typical Applications
- Office Automatic Equipments
- Printer/paper Feeder
- Bank Equipments
- Safe Box
- Ad Equipment
- Household Appliances
- Electtric Door Locks
Specifications
| Product Name | N30 DC motor with gearbox Motor | |||
| Model | GM16-030-297G-13D | |||
| Rated Voltage | 3 V DC | |||
| No load speed | 50 RPM | |||
| No load current | 220 mA | |||
| Rated speed | 31 RPM | |||
| Rated current | 660 mA | |||
| Rated torque | 0.7 kgf.cm | |||
| Stall torque | 2.5 kgf.cm | |||
| Stall current | 2.3 A | |||
| Gear Ratio | 1:297 | |||
| Noise | ＜45dB | |||
| Back lash | 3 deg | |||
| Life time | 200 h | |||
Product Detail Presentation
