1.8 Degree 0.9 Stepper Motor 42mm (NEMA17) With Planetary Gearbox Multiple From 3:1 To 200:1 Of Gear Ratio

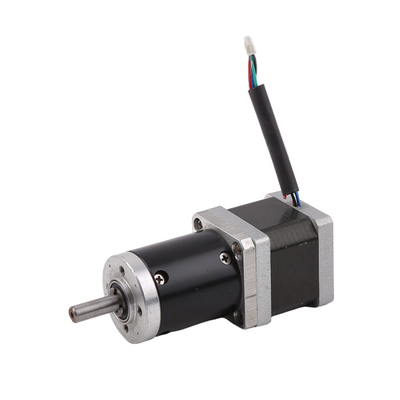

  • 1.8 Degree 0.9 Stepper Motor 42mm (NEMA17) With Planetary Gearbox Multiple From 3:1 To 200:1 Of Gear Ratio

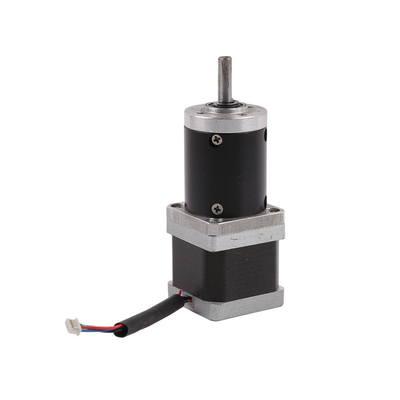

  • 1.8 Degree 0.9 Stepper Motor 42mm (NEMA17) With Planetary Gearbox Multiple From 3:1 To 200:1 Of Gear Ratio

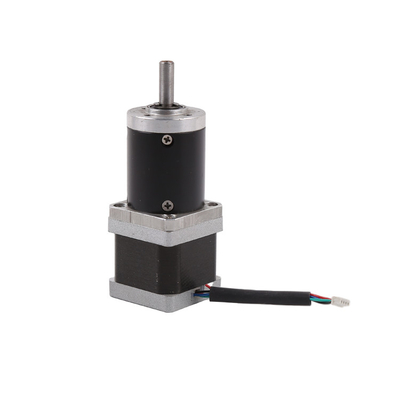

  • 1.8 Degree 0.9 Stepper Motor 42mm (NEMA17) With Planetary Gearbox Multiple From 3:1 To 200:1 Of Gear Ratio

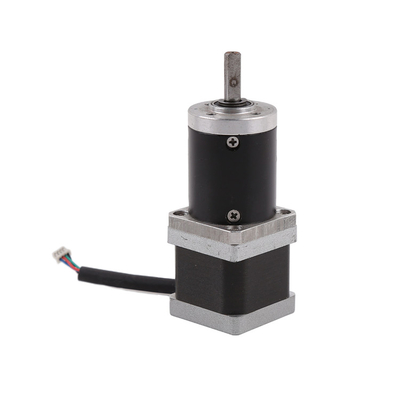

  • 1.8 Degree 0.9 Stepper Motor 42mm (NEMA17) With Planetary Gearbox Multiple From 3:1 To 200:1 Of Gear Ratio

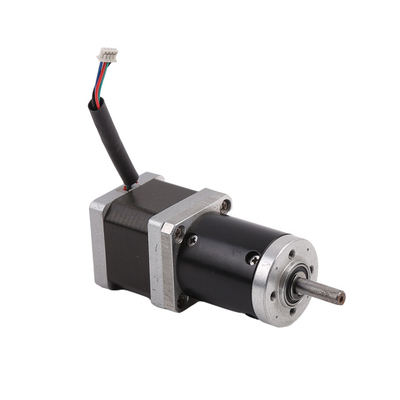

  • 1.8 Degree 0.9 Stepper Motor 42mm (NEMA17) With Planetary Gearbox Multiple From 3:1 To 200:1 Of Gear Ratio
  • 1.8 Degree 0.9 Stepper Motor 42mm (NEMA17) With Planetary Gearbox Multiple From 3:1 To 200:1 Of Gear Ratio
Place of Origin China
Brand Name VIC-TECH
Certification RoHS
Model Number 42HS40-PLE
Minimum Order Quantity 1Unit
Price $28~$55/Unit
Packaging Details The product is packed with pearl cotton, and the outside is in a carton.
Delivery Time 10~30 days after receiving sample payment
Payment Terms MoneyGram, Western Union,Credit Card,T/T, L/C
Supply Ability 100000\ Units/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Motor Type Hybrid Stepping Motor Gearbox Type Planetary Gearbox
Motor Size 42mm (NEMA17) Step Angle 0.9 / 1.8 Degrees/gear Ratio
Gear Ratio Multiple, From 3:1 To 200:1 Output Shaft Type Round Shaft With Slot
Highlight

1.8 Degree Planetary Gearbox Stepper Motor

,

42mm Planetary Gearbox Stepper Motor

,

Planetary Gearbox NEMA17 Stepper Motor
Leave a Message
Product Description

Planetary gearbox with 0.9 degrees 1.8 degree step angle 42 mm hybrid stepper motor



Description:

This 42mm square shape hybrid stepper motor with planetary gearbox.

We have different gear ratio combinations for you to choose.

The output shaft is a round shaft with a slot.



Motor’s output torque is related to motor’s length and gear box ratio.

We have different gearbox ratios and motor length for choose.



Gearbox information:

Level No. Efficiency Gearbox length(mm) Gearbox ratio
1 95% 40 3:1/4:1/5:1/7:1/10:1
2 90% 51

12:1/15:1/16:1/20:1/25:1/

28:1/35:1/40:1/50:1/70:1
3 85% 62

64:1/80:1/100:1/125:1/

140:1/175:1/200:1



Motor parameters:

Model No. 42HS40-PLE
Possible Motor length(L1) 25 / 28 / 34 / 40 / 48 / 52 / 60
Current range 0.4~1.7A/phase
Output type Round shaft with slot
Step angle (single motor) 0.9°/ 1.8°
Output torque Motor torque*gear ratio* efficiency





Design drawing:

1.8 Degree 0.9 Stepper Motor 42mm (NEMA17) With Planetary Gearbox Multiple From 3:1 To 200:1 Of Gear Ratio 0



Product display:

1.8 Degree 0.9 Stepper Motor 42mm (NEMA17) With Planetary Gearbox Multiple From 3:1 To 200:1 Of Gear Ratio 1





Application of stepper motors:

Stepper motors are used for precise control, widely used on medical equipment, 3D printer, industrial precise control, automation equipment, etc.

Stepper motors can be used in any mechanisms requirement precise conrtol and rotational/linear movement.





Advantage of stepper motors:

Stepper motor can reach precise control even without close-loop encoders / without feed back system, also they do not have electrical brushed. Thus there is no electromagnetic interference and electrical sparks issues. In some cases, they can replace DC brushed motors/ brushless motors.

Stepper motors are easy to control with drivers, and this feature establish its important position in the field of precise control.

1. Precise control achievable, programmable

2. Without electromagnetic interference & electrical sparks

3. Small size

4. Reasonable price

5. Low noise

6. Long service life
