High Torque Diameter 28mm Small Size 1.8 Degree Step Angle NEMA11 Hybrid Stepper Motor
| Place of Origin | China |
|---|---|
| Brand Name | VIC-TECH |
| Certification | RoHS |
| Model Number | NEMA11 |
| Minimum Order Quantity | 1Unit |
| Price | $6~$10/Unit |
| Packaging Details | The product is packed with pearl cotton, and the outside is in a carton. |
| Delivery Time | 10~30 days after receiving sample payment |
| Payment Terms | MoneyGram, Western Union,Credit Card,T/T, L/C |
| Supply Ability | 100000\ Units/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Motor Type | Hybrid Stepper Motor | Motor Size | 28mm |
|---|---|---|---|
| Shaft Type | Round Shaft | Step Angle | 1.8° |
| Motor Length | 32/45/51 Mm | Phase Current | 1A/phase |
| Highlight | 1.8 Degree Hybrid Stepper Motor,NEMA11 Hybrid Stepper Motor,Small Size Hybrid Stepper Motor |
||
Product Description
High Torque Diameter 28mm Small Size 1.8 Degree Step Angle NEMA11 Hybrid Stepper Motor
Description:
This is a 28mm NEMA 11 hybrid stepper motor.
There are 3 different heights for customers to choose from: 32mm, 45mm, 51mm.
The higher the height of this motor, the higher the motor torque.
Please select the appropriate height according to your space and torque requirements.
This motor shaft is a round shaft, in addition, we also have D shaft and screw shaft for customers to choose.
Motor parameters:
|
Motor length mm |
Holding torque N*m |
Rate current A/phase |
Resistance Ω/phase |
Inductance Mh/phase |
Rotational inertia g*cm |
Weight KG |
| 32 | 0.08 | 1 | 5.7 | 3.5 | 9 | 0.1 |
| 45 | 0.12 | 1 | 8.5 | 6.5 | 12 | 0.15 |
| 51 | 0.14 | 1 | 9.9 | 6.7 | 18 | 0.2 |
Design drawing:

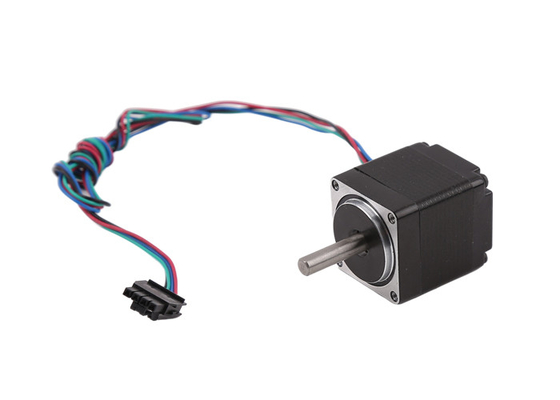

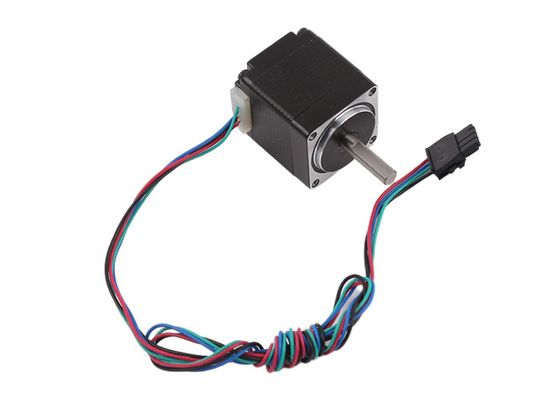

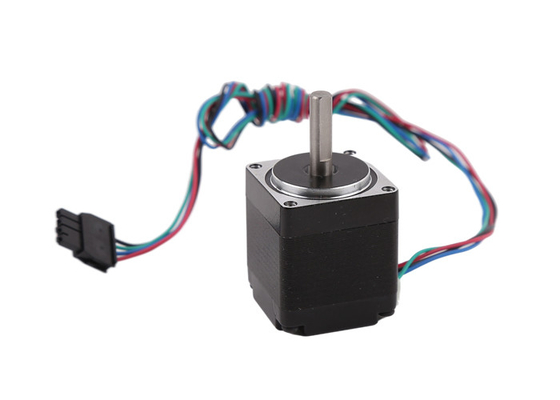

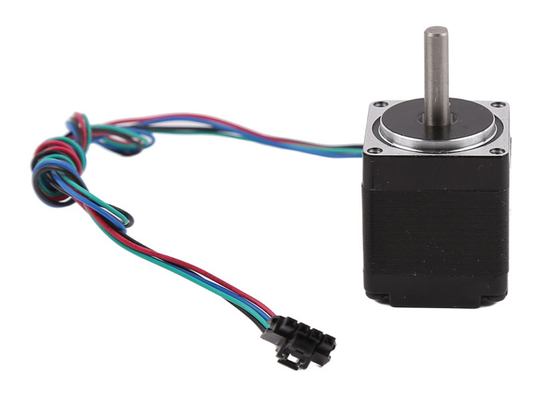

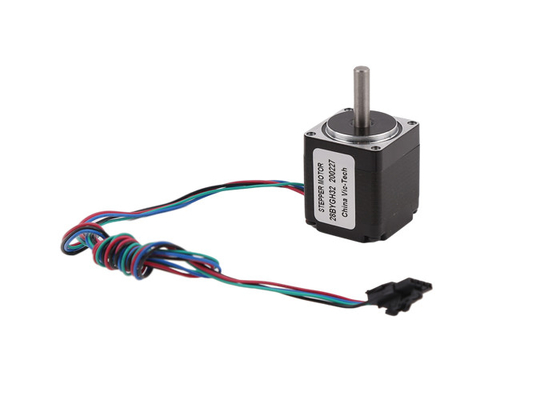

Product display:
Application of stepper motors:
Stepper motors are used for precise control, widely used on medical equipment, 3D printer, industrial precise control, automation equipment, etc.
Stepper motors can be used in any mechanisms requirement precise conrtol and rotational/linear movement.
Advantage of stepper motors:
Stepper motor can reach precise control even without close-loop encoders / without feed back system, also they do not have electrical brushed. Thus there is no electromagnetic interference and electrical sparks issues. In some cases, they can replace DC brushed motors/ brushless motors.
Stepper motors are easy to control with drivers, and this feature establish its important position in the field of precise control.
1. Precise control achievable, programmable
2. Without electromagnetic interference & electrical sparks
3. Small size
4. Reasonable price
5. Low noise
6. Long service life
Packaging and Shipping information:
All samples are packed in foam sponges in cartons.
For mass production, mass-produced products are packaged in cartons.
For sea shipping (mass production), cartons are packed on pallets.
Shipping time:
By express(DHL/ UPS/ Fedex/ TNT): 5~12 days
By 4PX express: 10~20 days
Sea shipping: 40~60 days (depends on different countries)
Our company information:
Changzhou Vic-tech Co., Ltd is founded in 2011. It has been specializing in producing micro motors and accessories , with over 20 years of R&D experience in motor industry.
After ten years of continuous innovation and development, we started to expand international business, with exports to Europe, South America, Canada, USA, Asia, and Australia.
We offer OEM/ODM service, and ensure timely response, personal test, safe packaging, on time delivery. One of the biggest reasons behind this success is our efficient after-sale service, ensure timely and professional assistance for clients.
Frequently asked Questions
1. Are you a manufacturer or a trader?
We are manufacturers. We make our own electric motors.
2. Where is your factory? May WE visit your factory?
Our factory is located in Changzhou. Please feel free to visit us if you would like.
3. Do you offer custom samples/free samples?
We can customize the sample, but there is an additional customization cost.
No, we don't send free samples.
4. What is the lead time of the sample?
For stock samples, delivery time is within 3 days.
For samples not in stock, lead time is approximately 15 days.
For custom samples, lead time is about 25 to 30 days.
5. What custom service do you offer?
We have a development team with over 20 years of experience.
We provide customized service for various motor components.
From the motor slider, lead screw, gear box design.
Cable length, connector type and FPC design.
6. If we want to develop a new product, can we sign an NDA contract?
Yes, we can sign the NDA contract and protect your confidentiality.
If you have a new project to develop, please feel free to contact us
