12V 100W Brushless DC Electric Motor Waterproof With Propeller for automation equipment, ROV Robots Drones.
| Place of Origin | China |
|---|---|
| Brand Name | VIC-TECH |
| Certification | RoHS |
| Model Number | SW2210 |
| Minimum Order Quantity | 1Unit |
| Price | $22~$33.8/Unit |
| Packaging Details | The product is packed with pearl cotton, and the outside is in a carton. |
| Delivery Time | 10~30 days after receiving sample payment |
| Payment Terms | MoneyGram, Western Union,Credit Card,T/T, L/C |
| Supply Ability | 100000\ Units/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Motor Type | Brushless DC Motor | Motor Structure | 12 Slots, 14 Poles |
|---|---|---|---|
| Rated Power | 100 W | Rated Voltage | 11.1V |
| Resistance | 0.55Ω±5% | Weight | 65g |
| Highlight | Waterproof Brushless DC Electric Motor,100W Brushless DC Electric Motor,12V Brushless DC Electric Motor |
||
Product Description
12V 100W Brushless DC Electric Motor Waterproof With Propeller for automation equipment, ROV Robots Drones.
Description:
This is our SW2210 brushless underwater motor, which is designed for underwater drones/ROV drones.
With new stator potting technique, motor is completely waterproof and it can handle up to 200 meters water depth.
This motor comes with a propeller, and there are 3 cables (U,V,W cables).
We have short shaft, and long shaft version, and this motor is short shaft.
With a regular brushless motor ESC (Electrical Speed Controller), this motor can rotate properly.
This motor can reach up to 1.5 KG (15N) of underwater thrust.
Parameters:
| Model No. | SW2210 |
| Rated voltage | 11.1V |
| Rated power | 100W |
| Motor structure | 12 slots, 14 poles |
| Resistance | 0.55Ω±5% |
| Underwater thrust | 1.5KG (15N) |
| Motor inductance | 60.5μH |
| Water depth | 200 meter |
Design drawing:

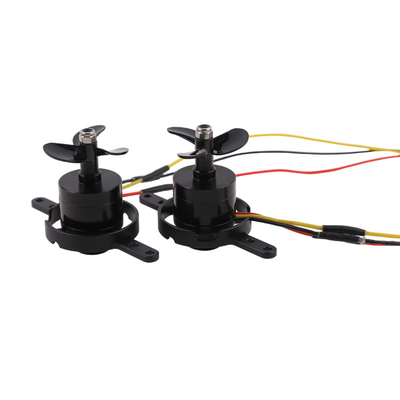

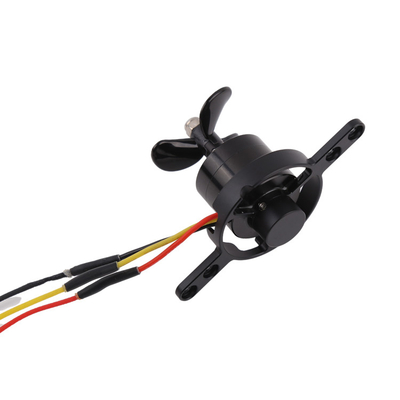

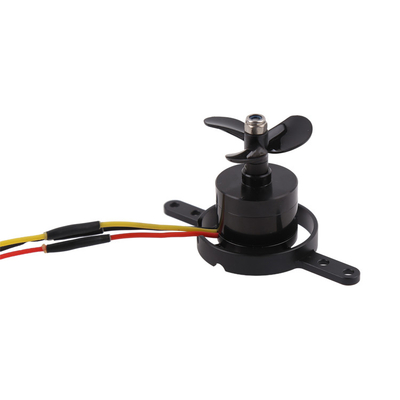

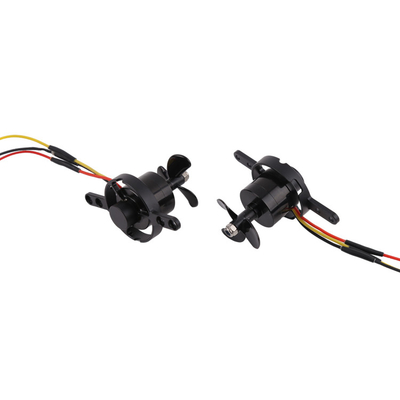

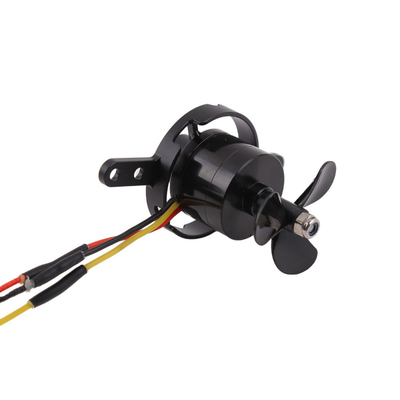

Product display:
About brushless underwater motor:
Our company mainly produces underwater brushless DC motor & stepper motors.
As one of earliest manufacturers developing underwater motor in China, we have ripe experience on designing and producing underwater products (we also provide OEM service), and reliable experimental data.
At the same time, we developed underwater motor potting technique, which protects stator from water, we have obtained National utility model patent certificate.
Our underwater motors receive very decent feedback from customers around the world, and our customers are quite impressed by its performance.
Advantage of our underwater motor:
- Long life
- High power
- High efficiency
- With stator potting technique, motor is 100% water proof
- Can handle 350~500 meters water depth
This motor comes with a propeller, and users can drive it with a regular brushless motor ESC (Electrical Speed Control)
