Weight 78g Long Shaft Underwater Brushless Motor For ROV Robots Drones Underwater thrust 1.5KG
| Place of Origin | China |
|---|---|
| Brand Name | VIC-TECH |
| Certification | RoHS |
| Model Number | SW2210 |
| Minimum Order Quantity | 1Unit |
| Price | $22~$33.8/Unit |
| Packaging Details | The product is packed with pearl cotton, and the outside is in a carton. |
| Delivery Time | 10~30 days after receiving sample payment |
| Payment Terms | MoneyGram, Western Union,Credit Card,T/T, L/C |
| Supply Ability | 100000\ Units/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Motor Type | Brushless Underwater Motor | Underwater Thrust | 1.5KG |
|---|---|---|---|
| Rated Power | 100 W | Rated Voltage | 11.1V (3s) |
| Resistance | 0.55Ω±5% | Weight | 78g |
| Highlight | 78g Underwater Brushless Motor,Long Shaft Underwater Brushless Motor,1.5KG Underwater Brushless Motor |
||
Product Description
SW2210 RC Brushless Underwater Motor Thruster Long Shaft For ROV Robots Drones
Description:
This is SW2210 long shaft version, and it has long shaft. (We also have short shaft for option)
This is a standard underwater motor, except it’s stator and rotor is waterproof.
With new stator potting technique, the entire stator is covered by water proof material.
Rotor’s magnet uses anodic oxidation technique, and the magnet is covered by waterproof protection layer.
Customers can use regular drone ESC (Electrical speed control) to drive this motor.
We only produce motors, and we do not provide ESC.
Parameters:
| Model No. | SW2210 |
| Motor type | Brushless underwater motor (long shaft) |
| Rated voltage | 11.1V (3s) |
| Rated power | 100W |
| Motor structure | 12 slots, 14 poles |
| Resistance | 0.55Ω±5% |
| Underwater thrust | 1.5KG (15N) |
| Water depth | 200 meter |
Design drawing:

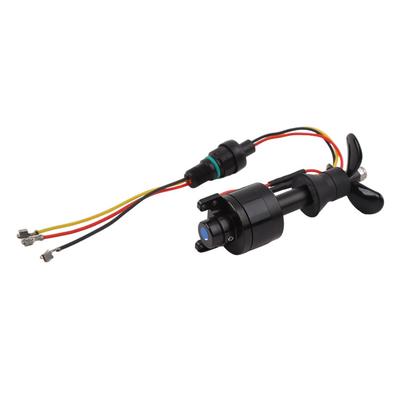

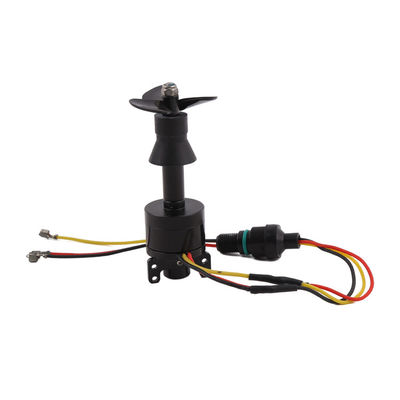

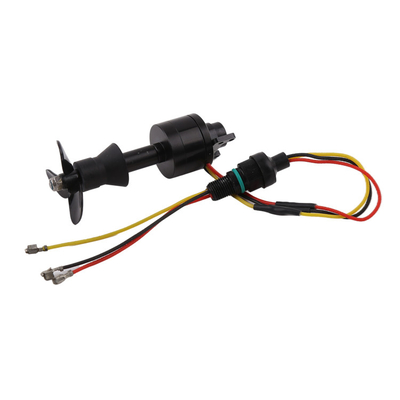

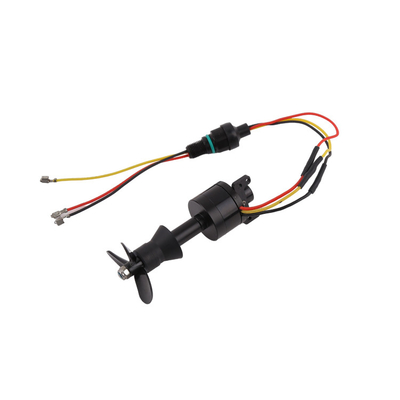

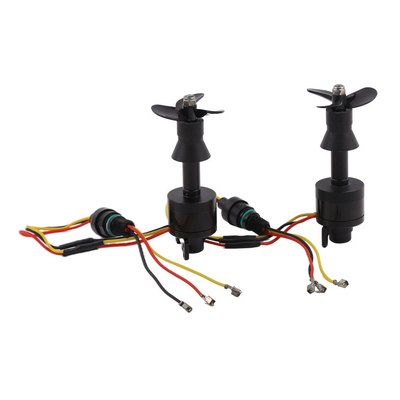

Product display:
About brushless underwater motor:
Our company mainly produces underwater brushless DC motor & stepper motors.
As one of earliest manufacturers developing underwater motor in China, we have ripe experience on designing and producing underwater products (we also provide OEM service), and reliable experimental data.
At the same time, we developed underwater motor potting technique, which protects stator from water, we have obtained National utility model patent certificate.
Our underwater motors receive very decent feedback from customers around the world, and our customers are quite impressed by its performance.
Advantage of our underwater motor:
- Long life
- High power
- High efficiency
- With stator potting technique, motor is 100% water proof
- Can handle 350~500 meters water depth
This motor comes with a propeller, and users can drive it with a regular brushless motor ESC (Electrical Speed Control)
