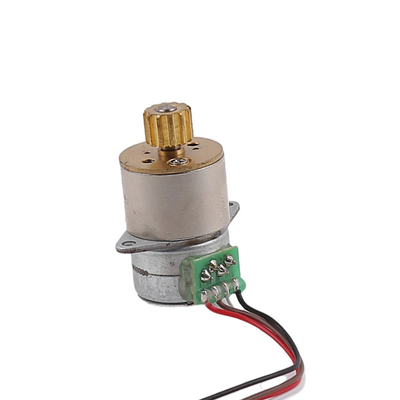

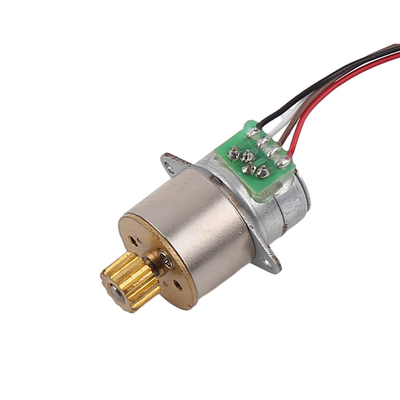

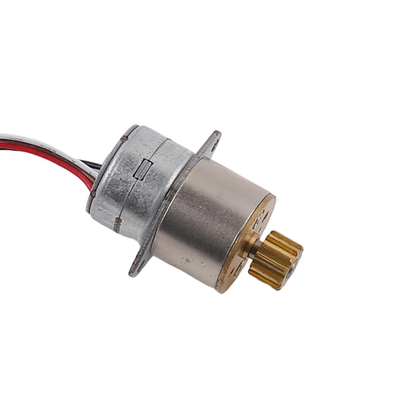

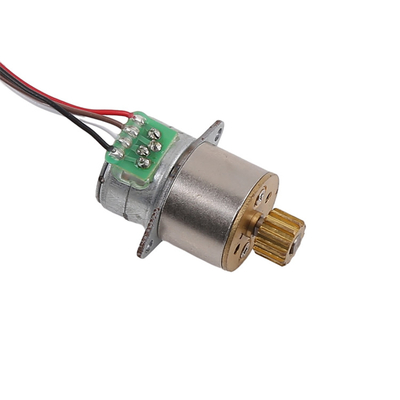

SM1516 Low Speed High Torque Step Motor 5v15mm 12 Volt Geared Stepper Motor
| Place of Origin | China |
|---|---|
| Brand Name | VIC-TECH |
| Certification | RoHS |
| Model Number | SM1516 |
| Minimum Order Quantity | 1Unit |
| Price | $5~7/unit |
| Packaging Details | Standard export package, or can be customized |
| Delivery Time | 10~30 days after the sample is paid |
| Payment Terms | MoneyGram, Western Union,Credit Card,T/T, L/C |
| Supply Ability | 10000 PCS 45days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Gear Motor | Torque | High Torque |
|---|---|---|---|
| Construction | Permanent Magnet | Voltage(v) | 5V |
| Output Shaft | Customizable | Reduction Ratio | Customizable1:10~350:1 |
| Directions | CW/CCW | Step Angle | 18 Degree |
| Current / Phase | 0.4A | Phase | 2-2 |
| Highlight | 5v15mm Geared Stepper Motor,Low Speed Geared Stepper Motor,12 Volt Geared Stepper Motor |
||
Product Description
15mm Geared stepper motor for 3D printer 5V Pm Stepping Gear motor
SM1516 Low Speed High Torque step motor 5v15mm 12 volt Geared Stepper Motor
Geared Stepper Motor 15mm DC Stepping reduction motor GM12-15BY Stepper gear motor Small volume for Fiber Fusion Splicer
The gear motor overall volume is small, the reduction ratio can be selected in a wide range,
The basic step angle of the motor is 18 degrees, that is 20 steps per revolution, plus the deceleration effect of the gear box, the final motor angle resolution can reach 0.018~0.9 degrees, which can be used in various places requiring precise control.
The selectable speed ratios are 1:0 1:16 1:20 1:30 1:35 1:39 1:50 1:62 1:66 1:87 1:102 1:153 1:169 1:210 1:243 1:297 1:350, different speed ratios will produce different final Torque and speed, customers can choose according to different torque and speed requirements. Special speed ratios can be customized, please contact us to discuss if necessary.
When selecting a motor, it is necessary to comprehensively consider the speed and torque while meeting the requirements.
This series of gear boxes adopts the most advanced related parts processing equipment, high precision, high efficiency, low noise, and adopts reasonable and reliable technology, so that the products have better reliability. The power input part and standard stepper motor can adopt the form of probe structure, FPC, FFC, PCB cable and so on. The output of the motor part can adopt various output structures such as round shaft, D shaft, screw, gear, pulley and so on!
SM15mmgearbox stepper main parameters:
| PRODUCT NAME | 15 mm worm geared stepper motor |
| MODEL | SM1516 |
| VOLTAGE | 5V |
| RESISTENCE | 10Ω±7% (optional 20 15 10 ohm) |
| OPERATING TEMPERATURE RANGE | -0~+55 ℃ |
| GEAR RATIO | 10~350 |
| OEM & ODM SERVICE | AVAILABLE |
| EFFICIENCY | 10~20% |
| SPEED RANGE | Motor(0~3000RPM) Out shaft(0~300rpm) |
SM15 gear stepper motor out drawing:
SM15 gear stepper torque curve:
Since there are many speed options, the output torque can be the torque * speed ratio * efficiency of the motor, and the specific situation will generally be determined after testing the actual sample. The following is the torque curve of the SM15 stepper motor for reference.
Temperature rise

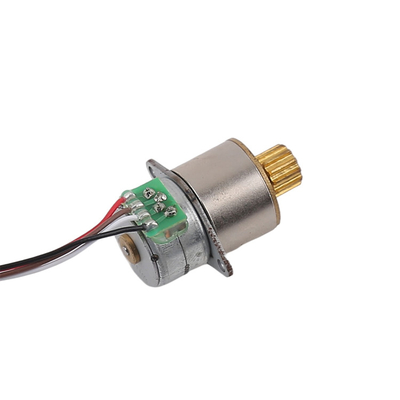

SM15 gear stepper motor display:
Packaging and Shipping Information:
Packing: single carton/box packing, sample packing box size: 28*17*16cm
Packaging according to quantity
Shipping time:
DHL: 5~7 working days;
UPS: 5~7 working days;
TNT: 5~7 working days;
FedEx: 7~9 working days;
EMS: 12~15 working days;
China Post: Depends on which country it is sent to;
Sea: depends on which country the ship goes to
