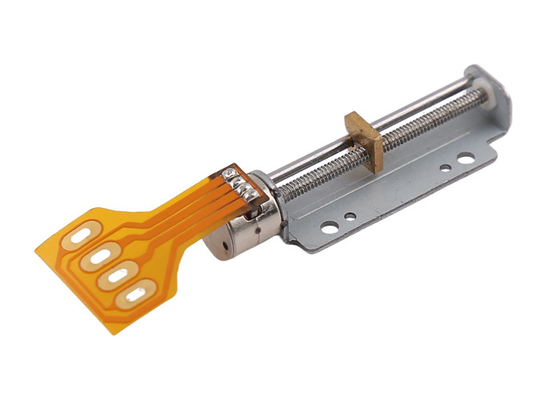

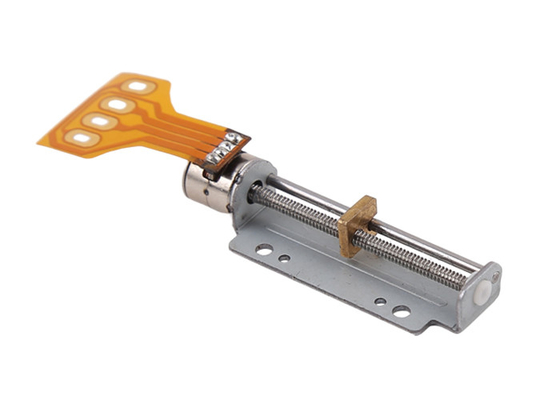

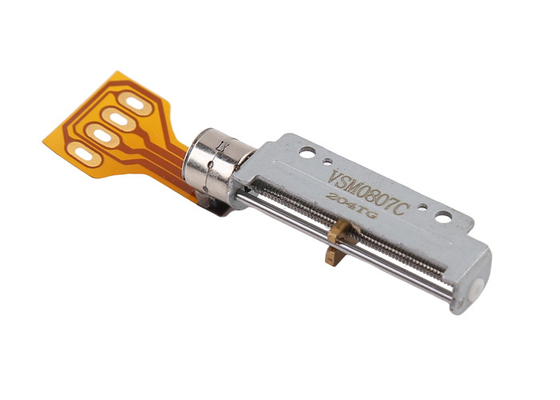

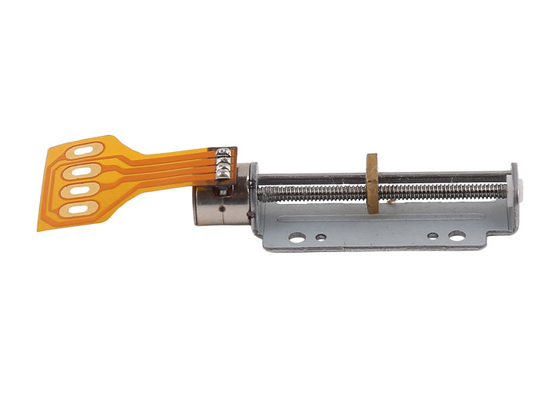

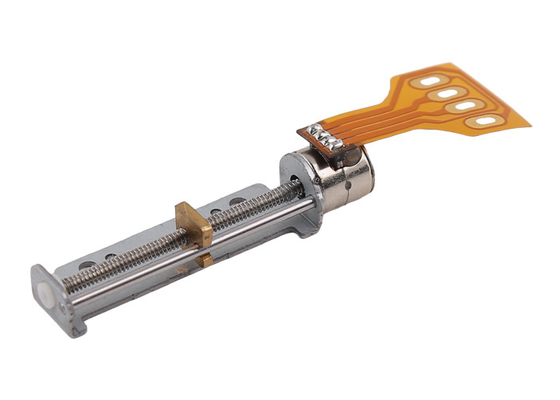

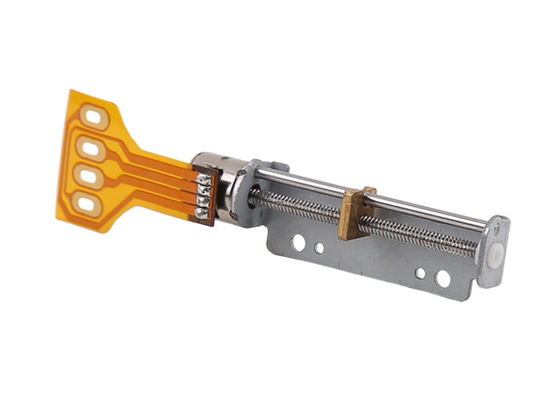

Small Slider Stepper Motor 5V DC 18° Step Angle 29mm Stroke With FPC Effective Stroke 29mm

  • Small Slider Stepper Motor 5V DC 18° Step Angle 29mm Stroke With FPC Effective Stroke 29mm
  • Small Slider Stepper Motor 5V DC 18° Step Angle 29mm Stroke With FPC Effective Stroke 29mm
  • Small Slider Stepper Motor 5V DC 18° Step Angle 29mm Stroke With FPC Effective Stroke 29mm
  • Small Slider Stepper Motor 5V DC 18° Step Angle 29mm Stroke With FPC Effective Stroke 29mm
  • Small Slider Stepper Motor 5V DC 18° Step Angle 29mm Stroke With FPC Effective Stroke 29mm
  • Small Slider Stepper Motor 5V DC 18° Step Angle 29mm Stroke With FPC Effective Stroke 29mm
Place of Origin China
Brand Name VIC-TECH
Certification RoHS
Model Number VSM0807C
Minimum Order Quantity 1Unit
Price $3~$7/Unit
Packaging Details The product is packed with pearl cotton, and the outside is in a carton.
Delivery Time 10~30 days after receiving sample payment
Payment Terms MoneyGram, Western Union,Credit Card,T/T, L/C
Supply Ability 100000\ Units/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Motor Type Stepper Motor+lead Screw+ Slider Slider Type Brass Slider
Lead Screw M2*0.5 Pitch Step Angle 18°
Stroke 29mm Connector Type FPC (adjustable)
Highlight

5VDC Slider Stepper Motor

,

18° Step angle Slider Stepper Motor

,

29mm Stroke Slider Stepper Motor
Leave a Message
Product Description

VSM0807C 5V DC lead screw linear 29mm travel distance stepper motor with FPC​



Description:



This is a 8mm diameter with M2 lead screw and brass slider.

Please notice that this is not standard M2*0.4P lead screw, and this is in fact M2*0.5P lead screw.

The lead screw pitch is different.



The FPC is also specially design, and if customer can not find a connector to match with this FPC, we can send with bare pins, or solder PCB+cables+connector.

Such as Molex 51021-0400 (1.25mm pitch connector) is also optional



Parameters:



Step angle 18°/step Resistance 16Ω/phase Voltage 5 V DC
Travel per step 0.025mm Lead screw M2*P0.5 Effective stroke 29 mm
Max Starting frequency 800Hz(Min) Max response frequency 2000Hz(Min) Pull-out thrust

80g Min

(500 PPS)



Design drawing:

Small Slider Stepper Motor 5V DC 18° Step Angle 29mm Stroke With FPC Effective Stroke 29mm 0





Product display:

Small Slider Stepper Motor 5V DC 18° Step Angle 29mm Stroke With FPC Effective Stroke 29mm 1



About linear stepper motor with slider:

Our slider motor is a full set of assembly including motor + lead screw + bracket + slider.

Motor’s step angle is generally 18°/step, which means 20 steps for each turn.

When motor rotates one turn, slider moves one lead.

For single start lead screws: pitch =lead.



So the step length is (step length means linear movement slider travels, when the stepper motor take exactly one step):

Lead screw lead/steps of each rotation



For example if lead screw is M2*0.4P (0.4mm pitch regular M2 lead screw), step angle of the motor is 18°, step length of this motor is 0.4mm/20=0.02mm/step.



Also, lead screw length is customizable, and we also need to adjust bracket’s design, if you customize lead screw length.



Application of stepper motors:

Stepper motors are used for precise control, widely used on medical equipment, 3D printer, industrial precise control, automation equipment, etc.

Stepper motors can be used in any mechanisms requirement precise conrtol and rotational/linear movement.





Advantage of stepper motors:

Stepper motor can reach precise control even without close-loop encoders / without feed back system, also they do not have electrical brushed. Thus there is no electromagnetic interference and electrical sparks issues. In some cases, they can replace DC brushed motors/ brushless motors.

Stepper motors are easy to control with drivers, and this feature establish its important position in the field of precise control.

1. Precise control achievable, programmable

2. Without electromagnetic interference & electrical sparks

3. Small size

4. Reasonable price

5. Low noise

6. Long service life

Small Slider Stepper Motor 5V DC 18° Step Angle 29mm Stroke With FPC Effective Stroke 29mm 2



Packaging and Shipping information:

Samples are packed with foam sponge inside paper box.

For mass production, products are packed in paper carton.

For sea shipping (Mass production), cartons are packed on pallet.



Shipping time:

By express(DHL/ UPS/ Fedex/ TNT): 5~12 days

By 4PX express: 10~20 days

Sea shipping: 40~60 days (depends on different countries)
