18 Degree Step Angle Lead Pitch M3 P 0.5mm 20mm POM Slider Stepper Motor 12VDC Lead Screw Motor 2 Phase
| Place of Origin | China |
|---|---|
| Brand Name | VIC-TECH |
| Certification | RoHS |
| Model Number | SM20-63L POM slider |
| Minimum Order Quantity | 1Unit |
| Price | US$4.5~18.5 |
| Packaging Details | The product is packed with pearl cotton, and the outside is in a carton. |
| Delivery Time | 10~30 days after receiving sample payment |
| Payment Terms | MoneyGram, Western Union,Credit Card,T/T, L/C |
| Supply Ability | 100000\ Units/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Step Angle | 18 Degree | Lead Pitch | M3 P 0.5mm |
|---|---|---|---|
| Driving Voltage | 12 VDC | Coil Resistance | 30 Ohm （can Customization） |
| Driving Method | 2 Phase | Electric Current | 400mA/phase |
| Size | Customized Size | Motor Diameter | 20mm |
| Highlight | 18 degree Slider Stepper Motor,20mm Slider Stepper Motor,POM Slider Stepper Motor |
||
Product Description
20mm Slider Stepper Motor 12VDC lead screw 2phase stepper motor with POM slider
20mm M3 lead screw slider stepper motor features:
SM20-66L is a precision micro stepper motor, the screw length is 66mm, the micro slider stepper motor POM slider with bracket 12V DC linear stepper motor, the output shaft has a lead screw with a pitch of 0.5mm, through the lead screw and the screw The lead screw supported by the rod rotates into thrust.
The basic step angle of the motor is 18 degrees, and the motor runs 20 steps per week, so the displacement resolution can reach 0.02mm, achieving the purpose of precise control.
The input part of the motor is a connecting wire, but it can be changed into a connecting wire needle, PCB and other forms according to customer needs.
Mounting brackets can be customized according to customer installation requirements.
Since the output shaft of the motor is a lead screw, during the rotation of the lead screw, the lead screw drives the slider to move back and forth. This conveniently provides actions such as forward and backward. In addition, the stepping motor can precisely control the speed, the number of revolutions, etc., which also determines the movement speed of the slider, and the movement position is accurately controllable. The positioning accuracy can be controlled within 0.05mm.
Main Application
1) vending machine
2) Optical instruments
3) Precision medical devices
4) beauty equipment
Other precise control application
20mm M3 lead screw slider stepper motor Specifications:
| Model No. | SM20-63L POM slider |
| Motor type | Linear stepper motor |
| Phase No. | 2 phases |
| Step angle | 18 degrees |
| Phase resistance | 30 Ohms/phase |
| Excitation method | 2-2 bipolar drive |
| Rated voltage | 5 - 12 V DC |
| Lead screw type | M3*0.5Pitch thread |
| Stroke | 66 mm |
| Pull-out thrust | Over 500 gf at 700 PPS |
| Max response frequency |
Over 1600 PPS |
Drawing of 20mm plastic slider stepper motor with 66mm stroke:

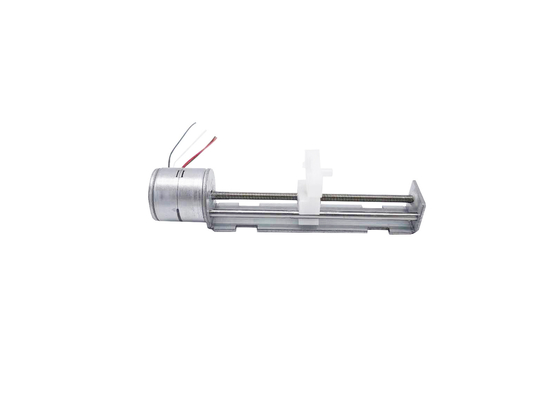

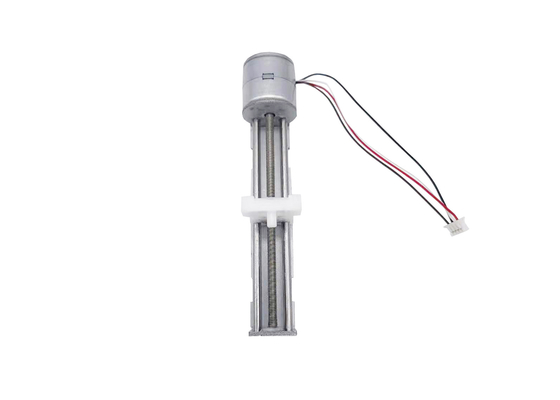

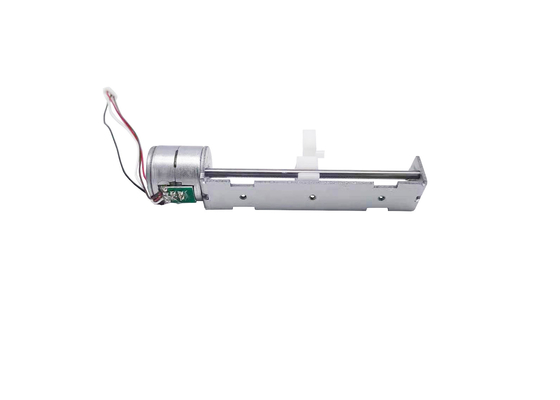

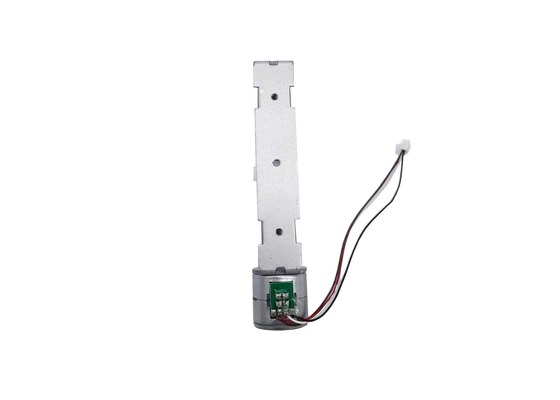

Product display for 20mm plastic slider stepper motor:
Customers can customize content:
1. In terms of product outer diameter, different sizes such as 6 8 10 15 20 25mm can be selected according to the customer's use environment, space strength, etc.
2. The outlet position of the motor can be freely selected within a 360-degree range, so as to meet the installation requirements in the best state. At the same time, Connector can choose lead wire, PCB, FPC bare pin.
2. According to the requirements of customers, the effective stroke of the motor can be customized within a certain range, mainly considering the diameter and length of the screw,.
usually the maximum length of the M2 screw can be 50mm, the M3 screw can be 100mm, and the M4 screw can be 100mm. Can do 150mm. The use of a lead screw with an excessively large diameter for a small motor consumes a lot of power, so comprehensive consideration should be taken when selecting a motor.
4. The material of the slider is generally made of plastic, which is easy to form and economical.
When the customer has special use environment and requirements, the slider can also be made of metal parts.
Of course, the cost will be relatively high, which is determined according to the customer's requirements for the shape and size of the slider.
