Step Angle 18°/step POM Plastic Slider Stepper Motor 20mm Diameter High Accuracy
| Place of Origin | China |
|---|---|
| Brand Name | VIC-TECH |
| Certification | RoHS |
| Model Number | SM20-66L-01 |
| Minimum Order Quantity | 1Unit |
| Price | $4.5~$12.7/Unit |
| Packaging Details | The product is packed with pearl cotton, and the outside is in a carton. |
| Delivery Time | 10~30 days after receiving sample payment |
| Payment Terms | MoneyGram, Western Union,Credit Card,T/T, L/C |
| Supply Ability | 100000\ Units/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Motor Type | Linear Stepper Motor With Slider | Motor Diameter | 20mm |
|---|---|---|---|
| Step Angle | 18°/step | Resistance | 30Ω/phase |
| Lead Screw | M3*0.5P | Thrust | >1 KG |
| Highlight | POM Plastic Slider Stepper Motor,High Accuracy Slider Stepper Motor,20mm Diameter Slider Stepper Motor |
||
Product Description

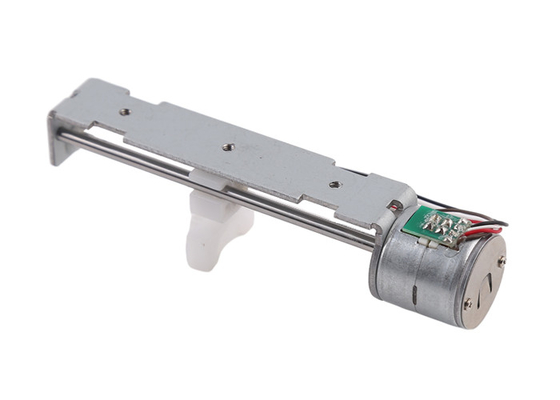

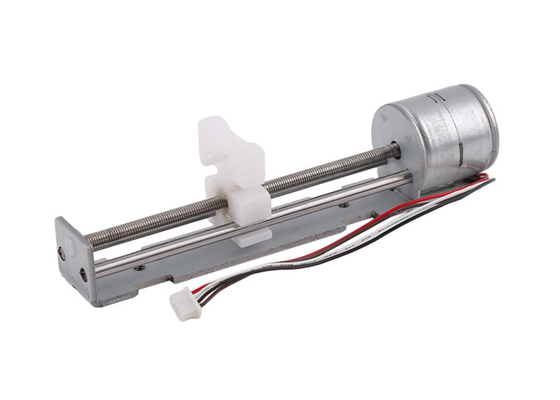

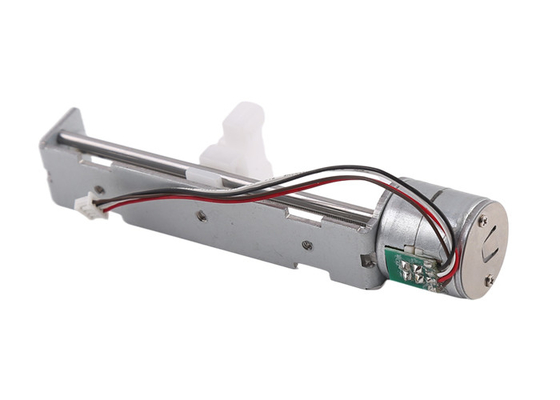

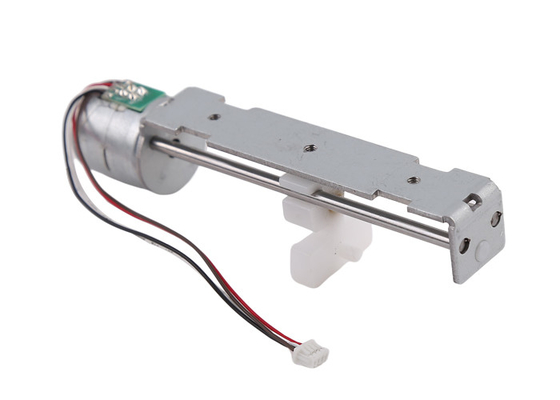

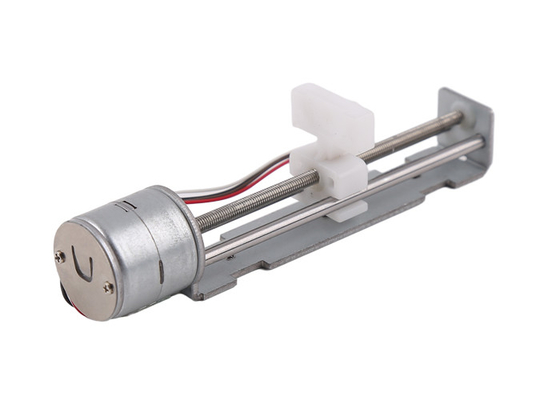

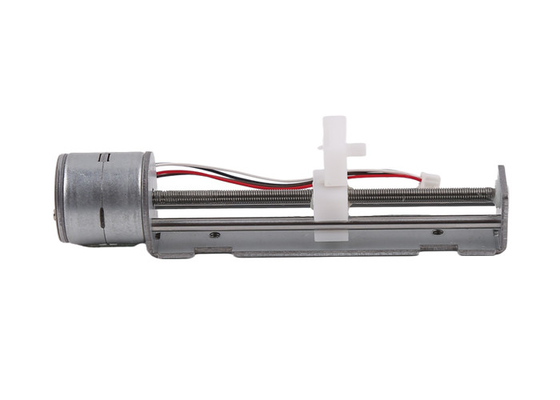

20mm diameter linear actuator motor high accuracy with POM plastic slider
This is a 20mm diameter linear stepper motor with M3*0.5P lead screw. Lead screw pitch is 0.5mm.
Travel distance(stroke) is about 66mm, and if customers what longer/shorter travel distance, we also have other lead screw length options.
The thrust of this motor is more than 1KG (10N), if customers do not need this much of thrust, and need smaller size, we also have 15mm motor with the same design as well, and its thrust is more than 500g (5N).
The slider is plastic(POM), we also have brass slider option, and it has double linear bearings with it. The cost of brass slider is higher than plastic slider design.
Feel free to leave a message if you are interested in this motor, or you have any questions about this motor.
Parameters:
| Model No. | SM20-66L-01 |
| Phase No. | 2 phase (Bipolar) |
| Coil resistance | 30Ω/phase |
| Step angle | 18°/step |
| Travel distance | 66 mm |
| Thrust | >1000g (700 PPS) |
| Lead screw type | M3*0.5P |
| Driving voltage | 9V |
Design drawing:
Product display:
About linear stepper motor with slider:
Our slider motor is a full set of assembly including motor + lead screw + bracket + slider.
Motor’s step angle is generally 18°/step, which means 20 steps for each turn.
When motor rotates one turn, slider moves one lead.
For single start lead screws: pitch =lead.
So the step length is (step length means linear movement slider travels, when the stepper motor take exactly one step):
Lead screw lead/steps of each rotation
For example if lead screw is M2*0.4P (0.4mm pitch regular M2 lead screw), step angle of the motor is 18°, step length of this motor is 0.4mm/20=0.02mm/step.
Also, lead screw length is customizable, and we also need to adjust bracket’s design, if you customize lead screw length.
Application of stepper motors:
Stepper motors are used for precise control, widely used on medical equipment, 3D printer, industrial precise control, automation equipment, etc.
Stepper motors can be used in any mechanisms requirement precise conrtol and rotational/linear movement.
Advantage of stepper motors:
Stepper motor can reach precise control even without close-loop encoders / without feed back system, also they do not have electrical brushed. Thus there is no electromagnetic interference and electrical sparks issues. In some cases, they can replace DC brushed motors/ brushless motors.
Stepper motors are easy to control with drivers, and this feature establish its important position in the field of precise control.
1. Precise control achievable, programmable
2. Without electromagnetic interference & electrical sparks
3. Small size
4. Reasonable price
5. Low noise
6. Long service life
Packaging and Shipping information:
Samples are packed with foam sponge inside paper box.
For mass production, products are packed in paper carton.
For sea shipping (Mass production), cartons are packed on pallet.
Shipping time:
By express(DHL/ UPS/ Fedex/ TNT): 5~12 days
By 4PX express: 10~20 days
Sea shipping: 40~60 days (depends on different countries)
