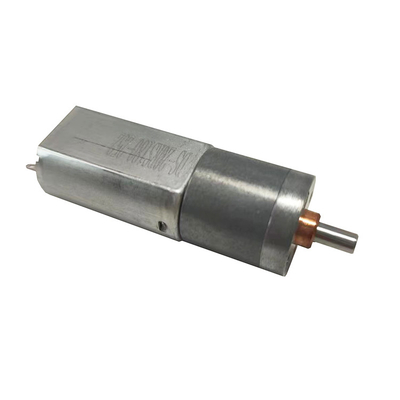

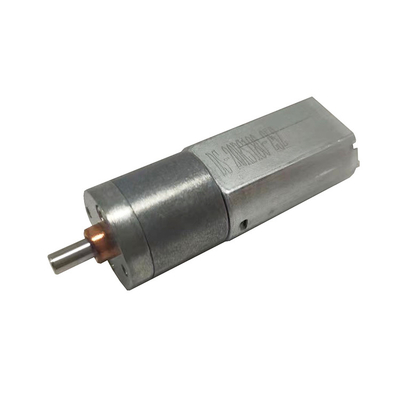

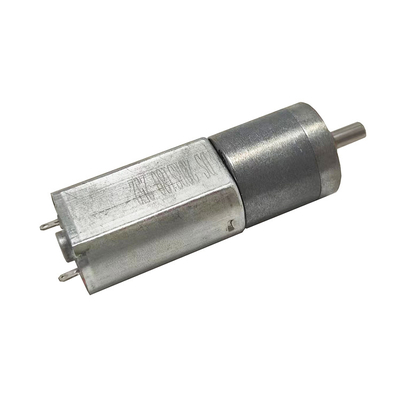

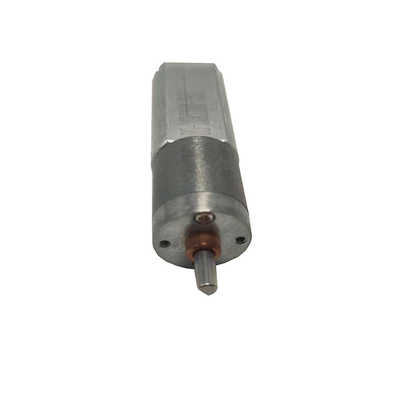

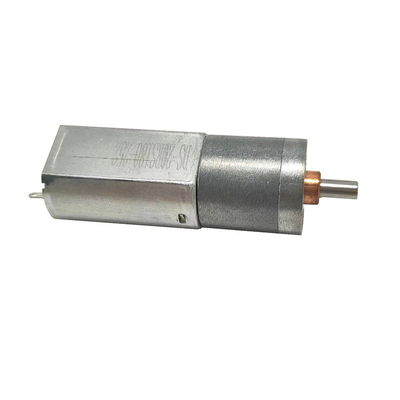

180 DC brushed motor with 20mm diameter pinion gearbox 12V DC multiple gear ratio available for Electtric Door Locks
| Place of Origin | Jiangsu, China (Mainland) |
|---|---|
| Brand Name | VIC-TECH |
| Certification | RoHS |
| Model Number | 20RS180 |
| Minimum Order Quantity | 1 Unit |
| Price | $5~$16/unit |
| Packaging Details | Standard export package, or can be customized |
| Delivery Time | 15-30 work days |
| Payment Terms | T/T, Western Union, MoneyGram |
| Supply Ability | 1000000 Units per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Gearbox Type | Pinion Gearbox | Gearbox Ratio | 18:1~758:1 |
|---|---|---|---|
| Motor Type | 180 DC Brushed Motor | Motor Diameter | 20mm |
| Output Shaft | D Shaft | Rated Voltage | 12V DC |
| Highlight | 20mm diameter pinion gearbox,180 DC brushed motor,12V DC brushed motor |
||
Product Description
180 DC brushed motor with 20mm diameter pinion gearbox 12V DC multiple gear ratio available
Mechanical Dimension:MM
This is 180 DC brushed motor attached with a pinion gearbox.
We have different gear ratios for option, from18:1 to 606:1.
The output speed and output torque depend on gear ratio of gearbox.
With higher ratio, output speed is slower, and output torque is higher.
The gearbox’s length & price depends on gearbox ratio.
The output speed (unload) of a single motor is about 15000 RPM.
Unloaded Output speed = 15000/gear ratio
Please confirm gear ratio before ordering samples.
Motor parameters:
| Motor type | 180 DC brushed motor |
| Motor diameter | 20mm |
| Rated voltage | 12 V DC |
| Unloaded output speed | 15000/gear ratio |
| Loaded output speed | 13000/ gear ratio |
| Gearbox type | Pinion gearbox |
| Output shaft type | 4mm diameter D shaft |
Gearbox parameters:
| Gearbox levels | 4 | 5 | 6 | 7 | 8 |
| Gear ratio | 18:1/23:1 | 35:1/44:1/55 |
67:1/84:1/ 105:1/132:1 |
161:1/220:1/ 252:1/316:1 |
386:1/484:1/ 606:1/758:1 |
| Gearbox length(mm) | 16.2 | 17.7 | 19.2 | 20.7 | 22.2 |
| Gearbox efficiency | 65% | 59% | 53% | 48% | 43% |
Product Detail Presentation
Typical Applications
- Office Automatic Equipments
- Printer/paper Feeder
- Bank Equipments
- Safe Box
- Ad Equipment
- Household Appliances
- Electtric Door Locks
