High Torque 8V 30 RPM Brushed DC Geared Motor About 0.5 to 3.5W 4 KG Torque Gear Ratio 1：527
| Place of Origin | Jiangsu, China (Mainland) |
|---|---|
| Brand Name | VIC-TECH |
| Certification | RoHS |
| Model Number | FF-180 Gear Motor |
| Minimum Order Quantity | VIC-TECH |
| Price | $3~$7/unit |
| Packaging Details | Standard export package, or can be customized |
| Delivery Time | 15-30 work days |
| Payment Terms | T/T, Western Union, MoneyGram |
| Supply Ability | 1000000Units per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Voltage | 8V DC | Output Power | About 0.5 To 3.5W |
|---|---|---|---|
| Type | DC Brush Motor | Usage | Door Locks And 3D Printers |
| Certification | ROHS | Torque | 4 KG |
| Commutation | Brushed | Speed(RPM) | 20-30( Rpm ) |
| No-Load Current | 200 MA | Gear Ratio | 1：527 |
| Highlight | 30 RPM Brushed DC Geared Motor,8V Brushed DC Geared Motor,FF-180 Brushed Gear Motor |
||
Product Description
FF-180 High Torque 8V DC 30 RPM Brushed Gear Motor for Electronic Lock
This product is sepecically designed for electrical door lock, it’s a FF-180 DC brush motor attached by a 527:1 reduction gear box.
It’s loaded speed is 22 RPM, with 4kgf.cm torque.

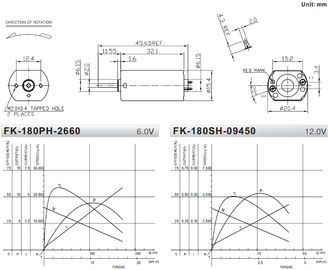

About FF-180PH motor (Without Gearbox):

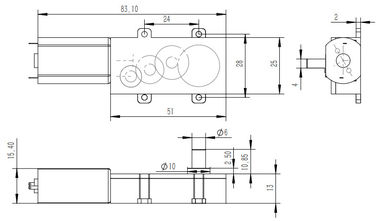

Mechanical Dimension(With Gearbox):MM
Typical Applications
- Electronic Lock
- Office Automatic Equipments
- Printer/paper Feeder
- Bank Equipments
-
Camera
-
label printer
- Electtric Door Locks
-
Label stripping machine
About DC brushed motors
This brushed DC motor is the most commonly used motor in the market.
It has brushes inside and has positive and negative pins (+ and -).
The speed of the DC motor can be controlled by different gear ratios or by PWM control. (Pulse Width Modulation)
It boosts the torque through the gearbox and the DC motor can reach higher torque compared to the original torque of the motor.
Specifications
| Rated voltage | No-load speed | Loaded speed | No-load current | Stall current | Rated torque | Stall torque |
| DC 8V | 30 RPM | 22 RPM | 200mA | 2000mA | 4kgf.cm | 25kgf.cm |
The above products are only representative models, we can customize the products according to customer requirements. Includes the length and diameter of the shaft.Our company can also provide OEM services.
