42mm 12 V 0.4 A Square Size Hybrid Stepping Motor 1.8 Degree Nema17 Stepper Motor for 3D Printer、Medical Machinery

  • 42mm 12 V 0.4 A Square Size Hybrid Stepping Motor 1.8 Degree Nema17 Stepper Motor for 3D Printer、Medical Machinery
  • 42mm 12 V 0.4 A Square Size Hybrid Stepping Motor 1.8 Degree Nema17 Stepper Motor for 3D Printer、Medical Machinery
  • 42mm 12 V 0.4 A Square Size Hybrid Stepping Motor 1.8 Degree Nema17 Stepper Motor for 3D Printer、Medical Machinery
  • 42mm 12 V 0.4 A Square Size Hybrid Stepping Motor 1.8 Degree Nema17 Stepper Motor for 3D Printer、Medical Machinery
Place of Origin Jiangsu, China (Mainland)
Brand Name VIC-TECH
Certification RoHS
Model Number 42HS34-0404-16AF
Minimum Order Quantity 1 Unit
Price $6 - $10.00 / Units
Packaging Details Standard export package, or can be customized
Delivery Time 15-30 work days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 100000Units per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Step Angle(degrees) 1.8° Voltage 12 V
Current 0.4 A Type Hybrid
Holding Torque 2.8Kg.cm Weight 0.22 A
Highlight

nema 11 stepper motor

,

2 phase hybrid stepper motor

,

1.8 Degree Nema17 Stepper Motor
Leave a Message
Product Description

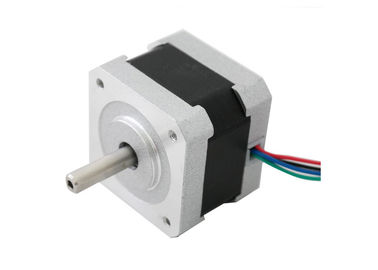

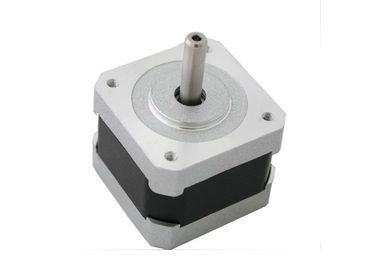

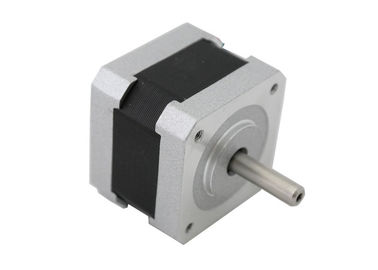

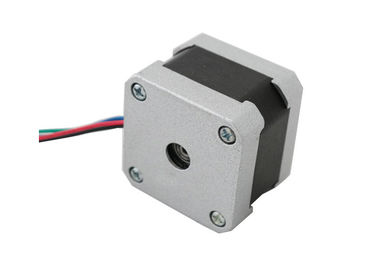

3D Printer Stepper Motor 42mm Square Size Hybrid Stepping Motor 1.8 Degree Nema17 Stepper Motor

NEMA17 3D printer stepper motor is a hybrid stepping motor with a square size of 42*34. The length may be adjusted according to the requirements of power, etc., and the range is generally between 20~51mm. It can be re-evaluated after special request.
Hybrid stepping motor has the advantages of high control precision, high transmission resolution and large output torque. It is widely used in engraving machines, medical equipment, stage lighting, precision instruments and other fields.
The necessary driving device or control device for the customer can cooperate with the customer for development.
The basic step angle of the motor is 1.8 degrees.
At the same time, we can provide the same size products with a step angle of 0.9 degrees!


42mm 12 V 0.4 A Square Size Hybrid Stepping Motor 1.8 Degree Nema17 Stepper Motor for 3D Printer、Medical Machinery 0

Mechanical Dimension:MM



42mm 12 V 0.4 A Square Size Hybrid Stepping Motor 1.8 Degree Nema17 Stepper Motor for 3D Printer、Medical Machinery 1

Typical Applications

  • 3D Printer
  • Monitoring Equipment
  • Medical Machinery
  • Vending Machine
  • Engineering Vehicle
  • CNC Engraving Machine
  • ATM Machine

Technique Parameter

PRODUCT NAME NEMA17 stepper motor
MODEL 42HS34-0404-16AF
RESISTANCE 30Ω±10%
INDUCTANCE 35mH±20%
INERTIA 2.8 Kg.cm
POSITION ACCURACY 1.8°±0.09°
TEMP RISE (max) 80℃
DIELECTRIC STRENGTH 500VDC
INSULATION RESISTANCE 100MOhm(500VDC)
RADIAL PLAY MAX 0.025mm(LOAD 450G)
AXIAL PLAY MAX 0.075mm(LOAD 920G)
INSULATION CLASS B



Torque Curve For ReferenceThe above products are only representative models, we can customize the products according to customer requirements. Includes the length and diameter of the shaft.Our company can also provide OEM services.

Product Detail Presentation



42mm 12 V 0.4 A Square Size Hybrid Stepping Motor 1.8 Degree Nema17 Stepper Motor for 3D Printer、Medical Machinery 2
