VSM10198 Slider Stepper Motor Low Noise 39mm Stroke M2*0.4P Lead Screw 120 Grams Thrust
Place of Origin | China |
---|---|
Brand Name | VIC-TECH |
Certification | RoHS |
Model Number | VSM10198 |
Minimum Order Quantity | 1Unit |
Price | $3~$7/Unit |
Packaging Details | The product is packed with pearl cotton, and the outside is in a carton. |
Delivery Time | 10~30 days after receiving sample payment |
Payment Terms | MoneyGram, Western Union,Credit Card,T/T, L/C |
Supply Ability | 100000\ Units/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMotor Type | Stepper Motor+lead Screw+slider | Lead Screw Type | M2*0.4P |
---|---|---|---|
Step Angle | 18°/step | Connector Type | JST-SHR-04V-S-B |
Travel Distance | 39mm | Rated Voltage | 3.3V~5V DC |
VSM10198 39mm stroke M2*0.4P lead screw 120 grams thrust micro stepper motor
Description:
This VSM10198 motor is a 10mm motor attached with a M2 lead screw and POM slider.
The effective stroke/traveling distance is about 39mm.
We also have other travel distance for you to choose.
It’s up to customer’s space and requirement.
This motor is able to life about 120 grams of weight.
This motor is commonly used to move camera lens.
It can also be used to move other objects, as long as the weight is below slider’s thrust.
Parameters:
Step angle | 18°/step | Resistance | 10Ω/phase | Voltage | 3.3~5 V DC |
Travel per step | 0.02mm | Lead screw | M2*P0.4 | Effective stroke | 39 mm |
Max Starting frequency | 1000Hz(Min) | Max response frequency | 1200Hz(Min) | Pull-out thrust |
120g Min (500 PPS) |
Design drawing:

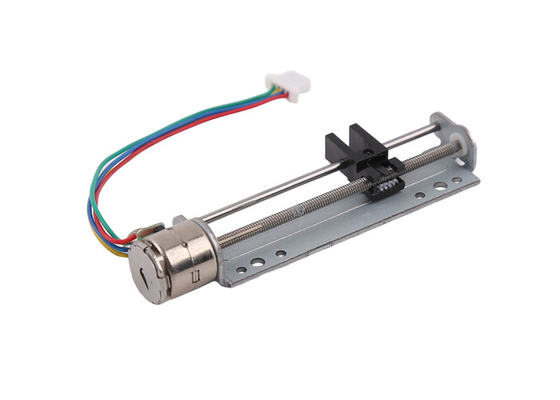

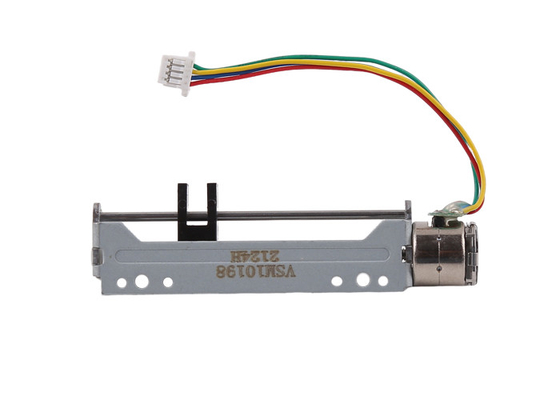

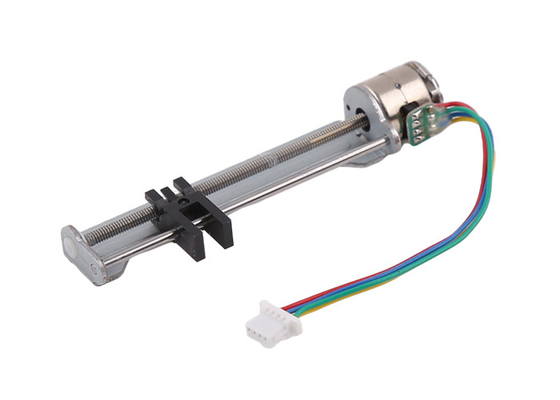

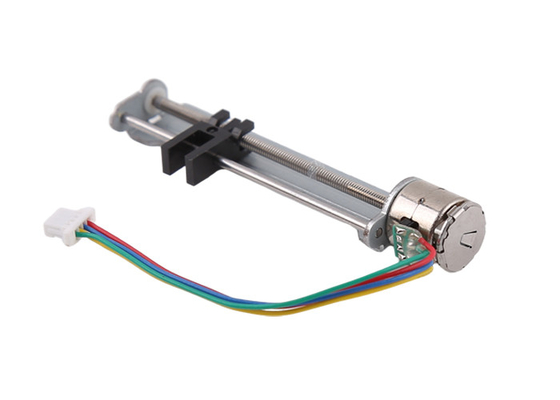

Product display:
About linear stepper motor with slider:
Our slider motor is a full set of assembly including motor + lead screw + bracket + slider.
Motor’s step angle is generally 18°/step, which means 20 steps for each turn.
When motor rotates one turn, slider moves one lead.
For single start lead screws: pitch =lead.
So the step length is (step length means linear movement slider travels, when the stepper motor take exactly one step):
Lead screw lead/steps of each rotation
For example if lead screw is M2*0.4P (0.4mm pitch regular M2 lead screw), step angle of the motor is 18°, step length of this motor is 0.4mm/20=0.02mm/step.
Also, lead screw length is customizable, and we also need to adjust bracket’s design, if you customize lead screw length.
Application of stepper motors:
Stepper motors are used for precise control, widely used on medical equipment, 3D printer, industrial precise control, automation equipment, etc.
Stepper motors can be used in any mechanisms requirement precise conrtol and rotational/linear movement.
Advantage of stepper motors:
Stepper motor can reach precise control even without close-loop encoders / without feed back system, also they do not have electrical brushed. Thus there is no electromagnetic interference and electrical sparks issues. In some cases, they can replace DC brushed motors/ brushless motors.
Stepper motors are easy to control with drivers, and this feature establish its important position in the field of precise control.
1. Precise control achievable, programmable
2. Without electromagnetic interference & electrical sparks
3. Small size
4. Reasonable price
5. Low noise
6. Long service life
Packaging and Shipping information:
Samples are packed with foam sponge inside paper box.
For mass production, products are packed in paper carton.
For sea shipping (Mass production), cartons are packed on pallet.
Shipping time:
By express(DHL/ UPS/ Fedex/ TNT): 5~12 days
By 4PX express: 10~20 days
Sea shipping: 40~60 days (depends on different countries)
